Description
Brand - TIMKEN
Item Number - JHM807045/JHM807012 (HM807045XS/HM807012ES) TIMKEN
Also Known As - JHM807045 - JHM807012 (HM807045XS - HM807012ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 50
Bore Diameter (d) inch - 1.9685
Outer Diameter (D) mm - 105
Outer Diameter (D) inch - 4.1339
Width (T) mm - 80
Width (T) inch - 3.1496
Width (C) mm - 63.54
Width (C) inch - 2.5016
Dynamic Radial Rating (C1) N - 354000
Dynamic Radial Rating (C1) lbf - 79600
Factor (e) - 0.49
Factor (Y1) - 1.38
Factor (Y2) - 2.06
Dynamic Radial Rating (90 million revolutions) (C90) N - 52700
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 11900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 44000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 9890
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 91800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 20600
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.2

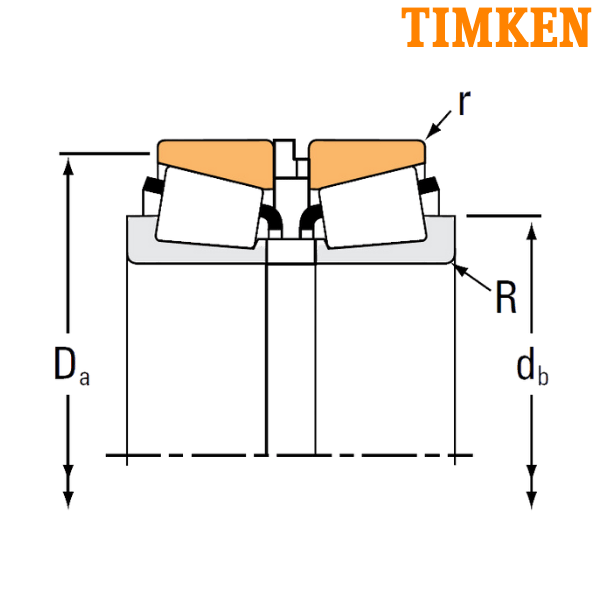

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 69
Backing Shoulder Diameter (db) inch - 2.72
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 100
Backing Shoulder Diameter (Da) inch - 3.94
Weight of the Bearing without Snap Ring (kg) - 3.13
Weight of the Bearing without Snap Ring (lbs) - 6.88
Inner Spacer - HM807045XS
Outer Spacer - HM807012ES
Snap Ring - K518781R
Inner Part Number - JHM807045
Outer Part Number - JHM807012
SR - SET-RIGHT Assembly
** Images are for representation purposes only
