Description
Brand - TIMKEN
Item Number - JL730646/JL730612 TIMKEN
Also Known As - JL730646 - JL730612
Category - Single Row Tapered Roller Bearing (TS Type)

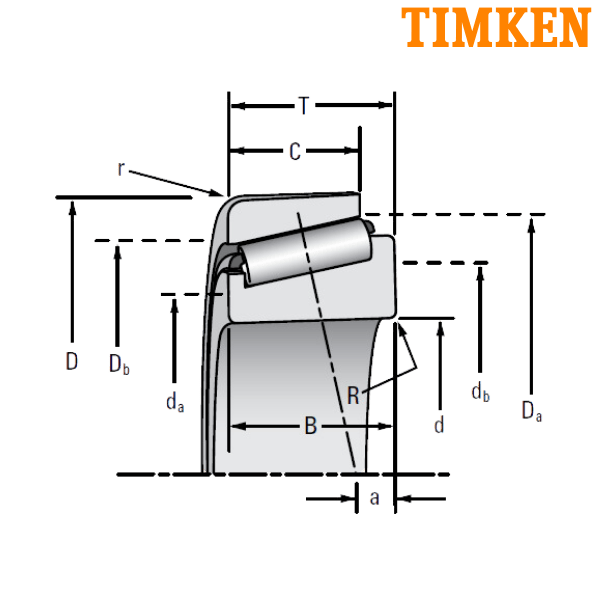

Bore Diameter (d) mm - 150
Bore Diameter (d) inch - 5.9055
Outer Diameter (D) mm - 205
Outer Diameter (D) inch - 8.0709
Width (T) mm - 28.575
Width (T) inch - 1.125
Dynamic Load Rating (C1) N - 183000
Dynamic Load Rating (C1) lbf - 41100
Factor (e) - 0.46
Factor (Y) - 1.31
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 47400
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 10700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 37200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8370
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.27
Basic Static Radial Load Rating (C0) N - 339000
Basic Static Radial Load Rating (C0) lbf - 76100
Cone Width (B) mm - 28.575
Cone Width (B) inch - 1.125
Cup Width (C) mm - 21.438
Cup Width (C) inch - 0.844
Effective Center Location (a) mm - 11.4
Effective Center Location (a) inch - 0.45
Maximum Shaft Fillet Radius (R) mm - 3.3
Maximum Shaft Fillet Radius (R) inch - 0.13
Cone Frontface Backing Diameter (da) mm - 158
Cone Frontface Backing Diameter (da) inch - 6.22
Cone Backface Backing Diameter (db) mm - 164
Cone Backface Backing Diameter (db) inch - 6.46
Max Housing Fillet Radius (r) mm - 3.3
Max Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 198
Cup Frontface Backing Diameter (Da) inch - 7.8
Cup Backface Backing Diameter (Db) mm - 190
Cup Backface Backing Diameter (Db) inch - 7.48
Cage-Cone Backface Clearance (Aa) mm - 2.4
Cage-Cone Backface Clearance (Aa) inch - 0.09
Cage-Cone Frontface Clearance (Ab) mm - 1.5
Cage-Cone Frontface Clearance (Ab) inch - 0.06
Geometry Factor (G1) - 295.2
Geometry Factor (G2) - 103.6
Geometry Factor (Cg) - 0.1763
Weight (kg) - 2.61
Weight (lbs) - 5.76
Inner Part Number - JL730646
Outer Part Number - JL730612
TS - Single Row Tapered Roller Bearing

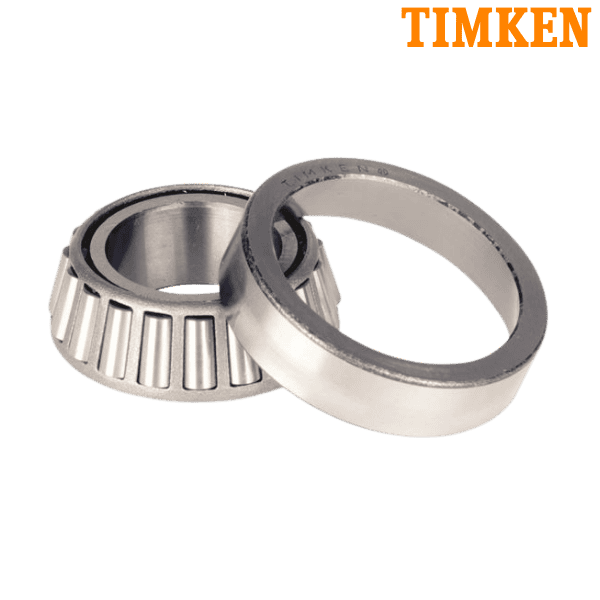

** Images are for representation purposes only
