Description
Brand - TIMKEN
Item Number - JLM104948/JLM104910 (LM104948XS/LM104910ES) TIMKEN
Also Known As - JLM104948 - JLM104910 (LM104948XS - LM104910ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 50
Bore Diameter (d) inch - 1.9685
Outer Diameter (D) mm - 82
Outer Diameter (D) inch - 3.2283
Width (T) mm - 49
Width (T) inch - 1.9291
Width (C) mm - 39.425
Width (C) inch - 1.5522
Dynamic Radial Rating (C1) N - 168000
Dynamic Radial Rating (C1) lbf - 37700
Factor (e) - 0.31
Factor (Y1) - 2.21
Factor (Y2) - 3.29
Dynamic Radial Rating (90 million revolutions) (C90) N - 25000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 5610
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 13000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2930
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 43500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 9770
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.91

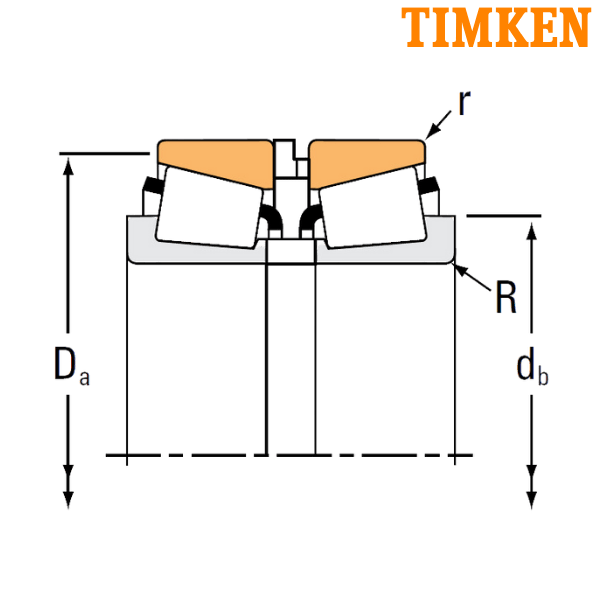

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 61
Backing Shoulder Diameter (db) inch - 2.4
Maximum Housing Fillet Radius (r) mm - 0.4
Maximum Housing Fillet Radius (r) inch - 0.02
Backing Shoulder Diameter (Da) mm - 78
Backing Shoulder Diameter (Da) inch - 3.07
Weight of the Bearing without Snap Ring (kg) - 0.91
Weight of the Bearing without Snap Ring (lbs) - 2.01
Inner Spacer - LM104948XS
Outer Spacer - LM104910ES
Snap Ring - K444653R
Inner Part Number - JLM104948
Outer Part Number - JLM104910
SR - SET-RIGHT Assembly
** Images are for representation purposes only
