Description
Brand - TIMKEN
Item Number - JLM710949C/JLM710910 (LM710949XS/LM710910ES) TIMKEN
Also Known As - JLM710949C - JLM710910 (LM710949XS - LM710910ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 65
Bore Diameter (d) inch - 2.5591
Outer Diameter (D) mm - 105
Outer Diameter (D) inch - 4.1339
Width (T) mm - 54
Width (T) inch - 2.126
Width (C) mm - 42.515
Width (C) inch - 1.6738
Dynamic Radial Rating (C1) N - 223000
Dynamic Radial Rating (C1) lbf - 50200
Factor (e) - 0.45
Factor (Y1) - 1.49
Factor (Y2) - 2.21
Dynamic Radial Rating (90 million revolutions) (C90) N - 33200
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 7470
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 25800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 5810
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 57900
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 13000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.29

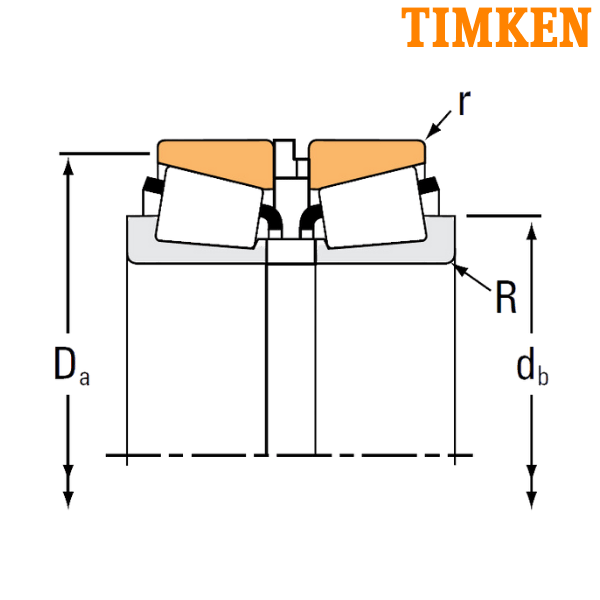

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 78
Backing Shoulder Diameter (db) inch - 3.07
Maximum Housing Fillet Radius (r) mm - 0.4
Maximum Housing Fillet Radius (r) inch - 0.02
Backing Shoulder Diameter (Da) mm - 100.5
Backing Shoulder Diameter (Da) inch - 3.96
Weight of the Bearing without Snap Ring (kg) - 1.61
Weight of the Bearing without Snap Ring (lbs) - 3.53
Inner Spacer - LM710949XS
Outer Spacer - LM710910ES
Snap Ring - K518781R
Inner Part Number - JLM710949C
Outer Part Number - JLM710910
SR - SET-RIGHT Assembly
** Images are for representation purposes only
