Description
Brand - TIMKEN
Item Number - JLM710949C/JLM710910 TIMKEN
Also Known As - JLM710949C - JLM710910
Category - Single Row Tapered Roller Bearing (TS Type)

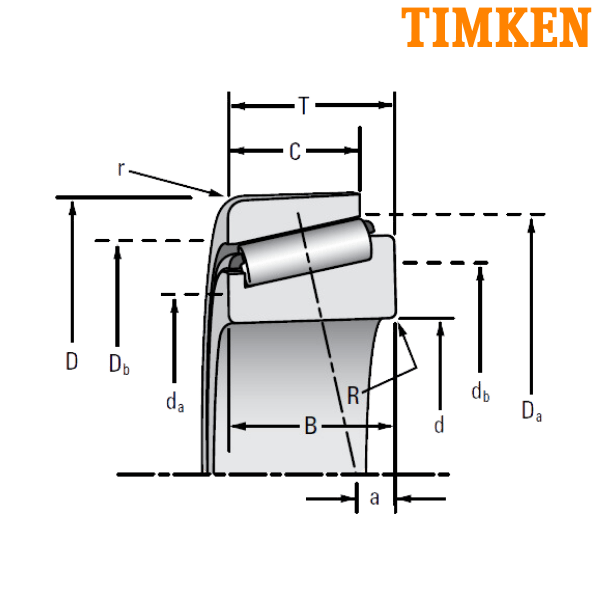

Bore Diameter (d) mm - 65
Bore Diameter (d) inch - 2.5591
Outer Diameter (D) mm - 105
Outer Diameter (D) inch - 4.1339
Width (T) mm - 24
Width (T) inch - 0.9449
Dynamic Load Rating (C1) N - 108000
Dynamic Load Rating (C1) lbf - 24300
Factor (e) - 0.45
Factor (Y) - 1.32
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 28000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 6310
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 21800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.29
Basic Static Radial Load Rating (C0) N - 139000
Basic Static Radial Load Rating (C0) lbf - 31300
Cone Width (B) mm - 23
Cone Width (B) inch - 0.9055
Cup Width (C) mm - 18.5
Cup Width (C) inch - 0.7283
Effective Center Location (a) mm - -0.3
Effective Center Location (a) inch - -0.01
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 72
Cone Frontface Backing Diameter (da) inch - 2.83
Cone Backface Backing Diameter (db) mm - 78
Cone Backface Backing Diameter (db) inch - 3.07
Max Housing Fillet Radius (r) mm - 1
Max Housing Fillet Radius (r) inch - 0.04
Cup Frontface Backing Diameter (Da) mm - 100.5
Cup Frontface Backing Diameter (Da) inch - 3.96
Cup Backface Backing Diameter (Db) mm - 96
Cup Backface Backing Diameter (Db) inch - 3.78
Cage-Cone Backface Clearance (Aa) mm - 1.5
Cage-Cone Backface Clearance (Aa) inch - 0.06
Cage-Cone Frontface Clearance (Ab) mm - 3
Cage-Cone Frontface Clearance (Ab) inch - 0.12
Geometry Factor (G1) - 55.5
Geometry Factor (G2) - 24.5
Geometry Factor (Cg) - 0.1023
Weight (kg) - 0.76
Weight (lbs) - 1.66
Inner Part Number - JLM710949C
Outer Part Number - JLM710910

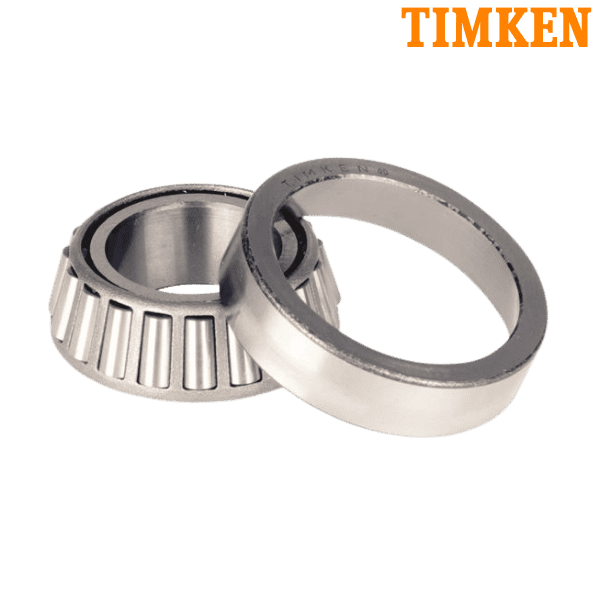

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
