Description
Brand - TIMKEN
Item Number - JLM714149/JLM714110 (LM714149XS/LM714110ES) TIMKEN
Also Known As - JLM714149 - JLM714110 (LM714149XS - LM714110ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 75
Bore Diameter (d) inch - 2.9528
Outer Diameter (D) mm - 115
Outer Diameter (D) inch - 4.5276
Width (T) mm - 56
Width (T) inch - 2.2047
Width (C) mm - 43.502
Width (C) inch - 1.7126
Dynamic Radial Rating (C1) N - 244000
Dynamic Radial Rating (C1) lbf - 54900
Factor (e) - 0.46
Factor (Y1) - 1.47
Factor (Y2) - 2.19
Dynamic Radial Rating (90 million revolutions) (C90) N - 36400
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 8180
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 28600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 6420
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 63400
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 14200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.27

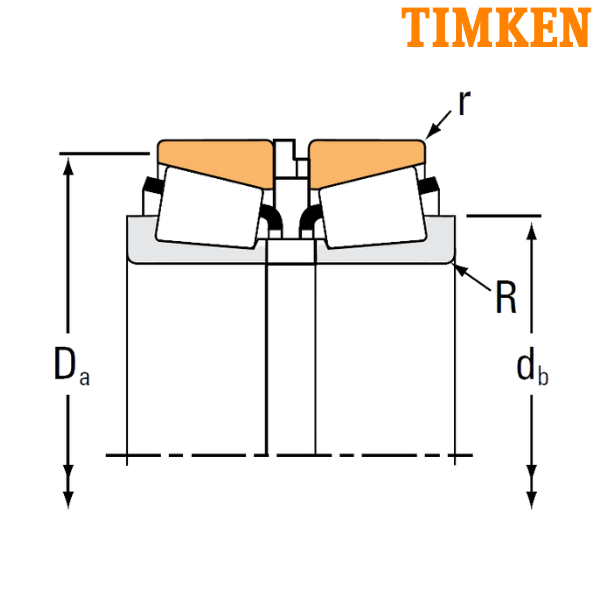

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 88
Backing Shoulder Diameter (db) inch - 3.46
Maximum Housing Fillet Radius (r) mm - 0.5
Maximum Housing Fillet Radius (r) inch - 0.02
Backing Shoulder Diameter (Da) mm - 110.5
Backing Shoulder Diameter (Da) inch - 4.35
Weight of the Bearing without Snap Ring (kg) - 1.87
Weight of the Bearing without Snap Ring (lbs) - 4.12
Inner Spacer - LM714149XS
Outer Spacer - LM714110ES
Snap Ring - K524105R
Inner Part Number - JLM714149
Outer Part Number - JLM714110
SR - SET-RIGHT Assembly
** Images are for representation purposes only
