Description
Brand - TIMKEN
Item Number - JM515649/JM515610 (M515649XS/M515610ES) TIMKEN
Also Known As - JM515649 - JM515610 (M515649XS - M515610ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 80
Bore Diameter (d) inch - 3.1496
Outer Diameter (D) mm - 130
Outer Diameter (D) inch - 5.1181
Width (T) mm - 78
Width (T) inch - 3.0709
Width (C) mm - 64.452
Width (C) inch - 2.5374
Dynamic Radial Rating (C1) N - 410000
Dynamic Radial Rating (C1) lbf - 92100
Factor (e) - 0.39
Factor (Y1) - 1.74
Factor (Y2) - 2.59
Dynamic Radial Rating (90 million revolutions) (C90) N - 61000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 13700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 40600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 9120
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 106000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 23900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.5

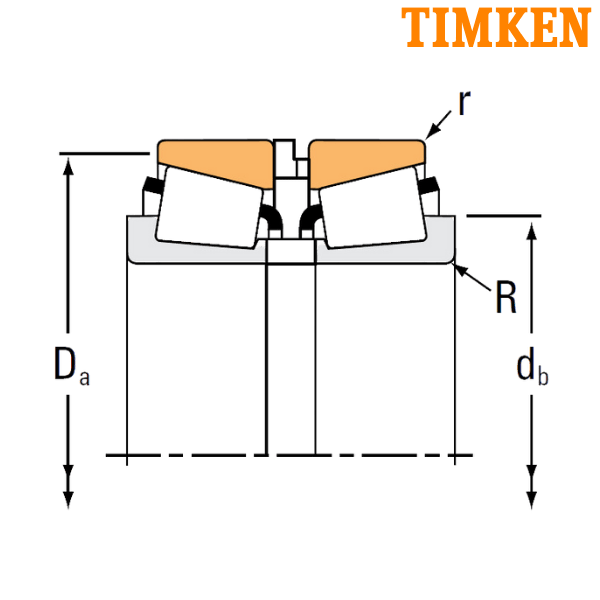

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 94
Backing Shoulder Diameter (db) inch - 3.7
Maximum Housing Fillet Radius (r) mm - 0.6
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 125
Backing Shoulder Diameter (Da) inch - 4.92
Weight of the Bearing without Snap Ring (kg) - 3.62
Weight of the Bearing without Snap Ring (lbs) - 8
Inner Spacer - M515649XS
Outer Spacer - M515610ES
Snap Ring - K524112R
Inner Part Number - JM515649
Outer Part Number - JM515610
SR - SET-RIGHT Assembly
** Images are for representation purposes only
