Description
Brand - TIMKEN
Item Number - JM716649/JM716610 TIMKEN
Also Known As - JM716649 - JM716610
Category - Single Row Tapered Roller Bearing (TS Type)

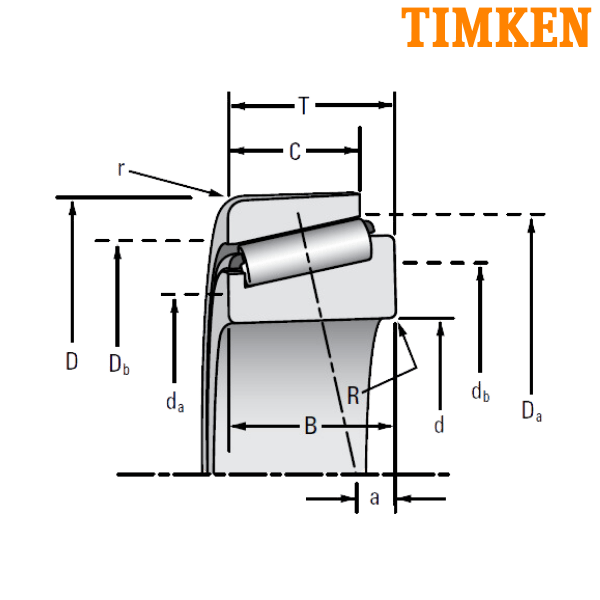

Bore Diameter (d) mm - 85
Bore Diameter (d) inch - 3.3465
Outer Diameter (D) mm - 130
Outer Diameter (D) inch - 5.1181
Width (T) mm - 30
Width (T) inch - 1.1811
Dynamic Load Rating (C1) N - 161000
Dynamic Load Rating (C1) lbf - 36300
Factor (e) - 0.44
Factor (Y) - 1.35
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 41800
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 9400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 31800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 7150
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.31
Basic Static Radial Load Rating (C0) N - 245000
Basic Static Radial Load Rating (C0) lbf - 55100
Cone Width (B) mm - 29
Cone Width (B) inch - 1.1417
Cup Width (C) mm - 24
Cup Width (C) inch - 0.9449
Effective Center Location (a) mm - -0.3
Effective Center Location (a) inch - -0.01
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 92
Cone Frontface Backing Diameter (da) inch - 3.62
Cone Backface Backing Diameter (db) mm - 98
Cone Backface Backing Diameter (db) inch - 3.86
Max Housing Fillet Radius (r) mm - 2.5
Max Housing Fillet Radius (r) inch - 0.1
Cup Frontface Backing Diameter (Da) mm - 125
Cup Frontface Backing Diameter (Da) inch - 4.92
Cup Backface Backing Diameter (Db) mm - 117
Cup Backface Backing Diameter (Db) inch - 4.61
Cage-Cone Backface Clearance (Aa) mm - 2
Cage-Cone Backface Clearance (Aa) inch - 0.08
Cage-Cone Frontface Clearance (Ab) mm - 2.6
Cage-Cone Frontface Clearance (Ab) inch - 0.1
Geometry Factor (G1) - 117.1
Geometry Factor (G2) - 38.4
Geometry Factor (Cg) - 0.1303
Weight (kg) - 1.36
Weight (lbs) - 3
Inner Part Number - JM716649
Outer Part Number - JM716610

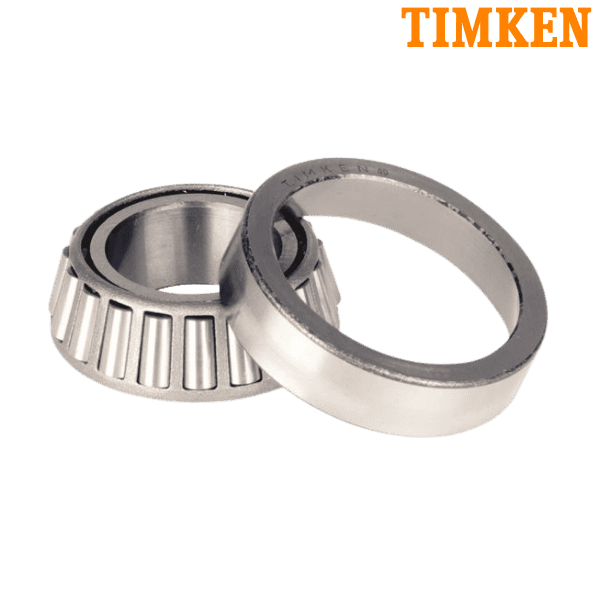

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
