JM719149/JM719113 TIMKEN

Brand - TIMKEN
Item Number - JM719149/JM719113 TIMKEN
Also Known As - JM719149 - JM719113
Category - Single Row Tapered Roller Bearing (TS Type)

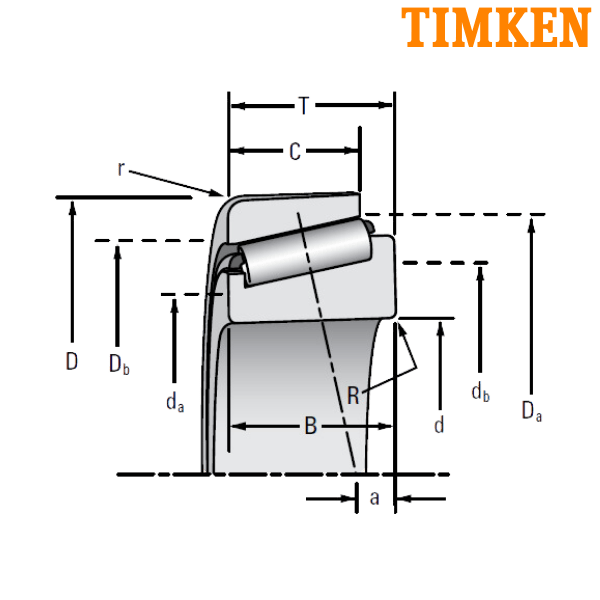

Bore Diameter (d) mm - 95
Bore Diameter (d) inch - 3.7402
Outer Diameter (D) mm - 150
Outer Diameter (D) inch - 5.9055
Width (T) mm - 35
Width (T) inch - 1.378
Dynamic Load Rating (C1) N - 215000
Dynamic Load Rating (C1) lbf - 48300
Factor (e) - 0.44
Factor (Y) - 1.36
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 55700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 12500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 42100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 9470
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.32
Basic Static Radial Load Rating (C0) N - 316000
Basic Static Radial Load Rating (C0) lbf - 71100
Cone Width (B) mm - 34
Cone Width (B) inch - 1.3386
Cup Width (C) mm - 27
Cup Width (C) inch - 1.063
Effective Center Location (a) mm - -1.6
Effective Center Location (a) inch - -0.06
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 104
Cone Frontface Backing Diameter (da) inch - 4.09
Cone Backface Backing Diameter (db) mm - 109
Cone Backface Backing Diameter (db) inch - 4.29
Max Housing Fillet Radius (r) mm - 2.5
Max Housing Fillet Radius (r) inch - 0.1
Cup Frontface Backing Diameter (Da) mm - 143
Cup Frontface Backing Diameter (Da) inch - 5.63
Cup Backface Backing Diameter (Db) mm - 135
Cup Backface Backing Diameter (Db) inch - 5.31
Cage-Cone Backface Clearance (Aa) mm - 3.1
Cage-Cone Backface Clearance (Aa) inch - 0.12
Cage-Cone Frontface Clearance (Ab) mm - 3.1
Cage-Cone Frontface Clearance (Ab) inch - 0.12
Geometry Factor (G1) - 150.5
Geometry Factor (G2) - 36.1
Geometry Factor (Cg) - 0.1413
Weight (kg) - 2.15
Weight (lbs) - 4.75
Inner Part Number - JM719149
Outer Part Number - JM719113
TS - Single Row Tapered Roller Bearing

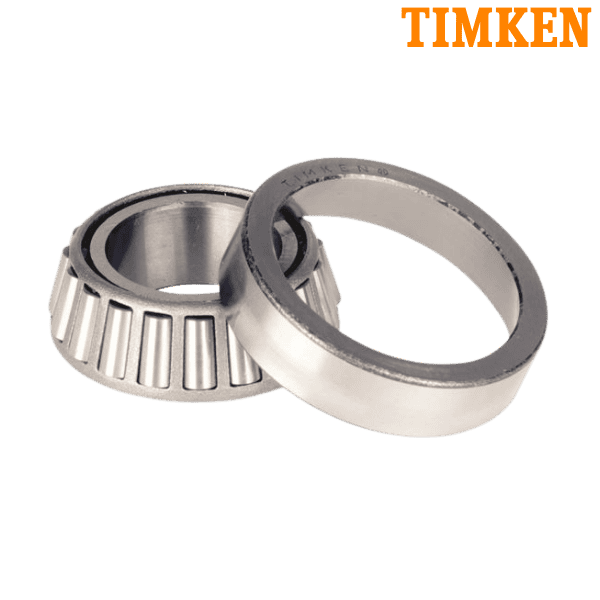

** Images are for representation purposes only
