Description
Brand - TIMKEN
Item Number - JM734449/JM734410 (M734449XS/M734410ES) TIMKEN
Also Known As - JM734449 - JM734410 (M734449XS - M734410ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 170
Bore Diameter (d) inch - 6.6929
Outer Diameter (D) mm - 240
Outer Diameter (D) inch - 9.4488
Width (T) mm - 101
Width (T) inch - 3.9764
Width (C) mm - 82.278
Width (C) inch - 3.2393
Dynamic Radial Rating (C1) N - 699000
Dynamic Radial Rating (C1) lbf - 157000
Factor (e) - 0.44
Factor (Y1) - 1.54
Factor (Y2) - 2.3
Dynamic Radial Rating (90 million revolutions) (C90) N - 104000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 23400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 77900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 17500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 181000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 40700
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.34

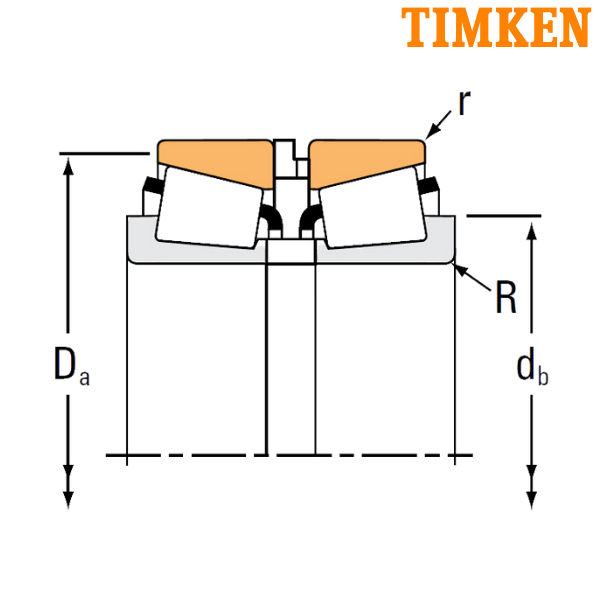

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 185
Backing Shoulder Diameter (db) inch - 7.28
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Backing Shoulder Diameter (Da) mm - 232
Backing Shoulder Diameter (Da) inch - 9.13
Weight of the Bearing without Snap Ring (kg) - 13.16
Weight of the Bearing without Snap Ring (lbs) - 29
Inner Spacer - M734449XS
Outer Spacer - M734410ES
Snap Ring - K518335R
Inner Part Number - JM734449
Outer Part Number - JM734410
SR - SET-RIGHT Assembly
** Images are for representation purposes only
