Description
Brand - TIMKEN
Item Number - JM736149/JM736110 TIMKEN
Also Known As - JM736149 - JM736110
Category - Single Row Tapered Roller Bearing (TS Type)

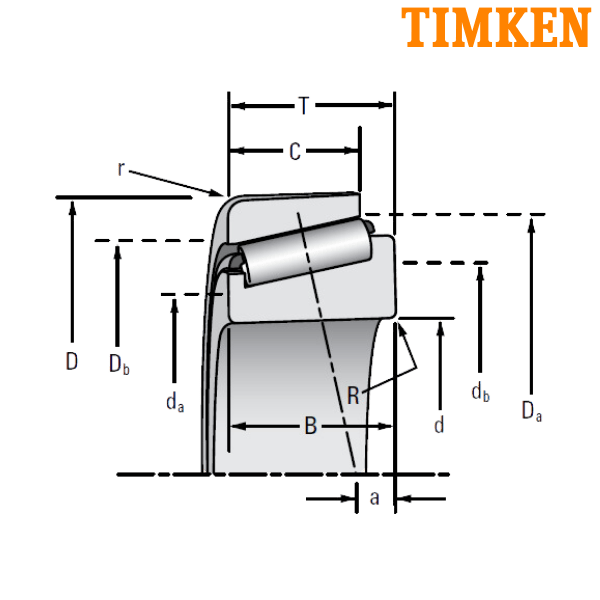

Bore Diameter (d) mm - 180
Bore Diameter (d) inch - 7.0866
Outer Diameter (D) mm - 250
Outer Diameter (D) inch - 9.8425
Width (T) mm - 47
Width (T) inch - 1.8504
Dynamic Load Rating (C1) N - 409000
Dynamic Load Rating (C1) lbf - 92000
Factor (e) - 0.48
Factor (Y) - 1.25
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 106000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 23800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 87200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 19600
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.22
Basic Static Radial Load Rating (C0) N - 786000
Basic Static Radial Load Rating (C0) lbf - 177000
Cone Width (B) mm - 45
Cone Width (B) inch - 1.7717
Cup Width (C) mm - 37
Cup Width (C) inch - 1.4567
Effective Center Location (a) mm - 8.9
Effective Center Location (a) inch - 0.35
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 190.5
Cone Frontface Backing Diameter (da) inch - 7.5
Cone Backface Backing Diameter (db) mm - 196
Cone Backface Backing Diameter (db) inch - 7.72
Max Housing Fillet Radius (r) mm - 2.5
Max Housing Fillet Radius (r) inch - 0.1
Cup Frontface Backing Diameter (Da) mm - 242.6
Cup Frontface Backing Diameter (Da) inch - 9.55
Cup Backface Backing Diameter (Db) mm - 232
Cup Backface Backing Diameter (Db) inch - 9.13
Cage-Cone Backface Clearance (Aa) mm - 3.3
Cage-Cone Backface Clearance (Aa) inch - 0.13
Cage-Cone Frontface Clearance (Ab) mm - 4.1
Cage-Cone Frontface Clearance (Ab) inch - 0.16
Geometry Factor (G1) - 589.4
Geometry Factor (G2) - 128
Geometry Factor (Cg) - 0.1227
Weight (kg) - 6.67
Weight (lbs) - 14.7
Inner Part Number - JM736149
Outer Part Number - JM736110

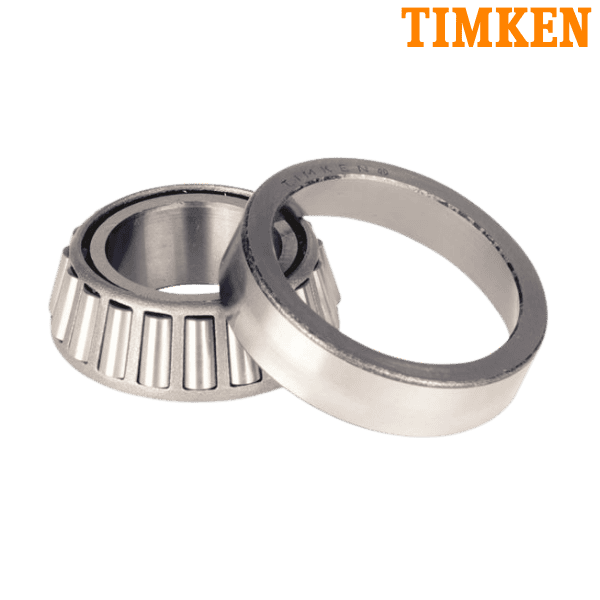

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
