Description
Brand - TIMKEN
Item Number - JM822049/JM822010 (JXH11010A/M822010ES) TIMKEN
Also Known As - JM822049 - JM822010 (JXH11010A - M822010ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 110
Bore Diameter (d) inch - 4.3307
Outer Diameter (D) mm - 165
Outer Diameter (D) inch - 6.4961
Width (T) mm - 79.756
Width (T) inch - 3.1401
Width (C) mm - 62.413
Width (C) inch - 2.4572
Dynamic Radial Rating (C1) N - 396000
Dynamic Radial Rating (C1) lbf - 88900
Factor (e) - 0.5
Factor (Y1) - 1.36
Factor (Y2) - 2.02
Dynamic Radial Rating (90 million revolutions) (C90) N - 58900
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 13200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 50100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 11300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 103000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 23100
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.18
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12

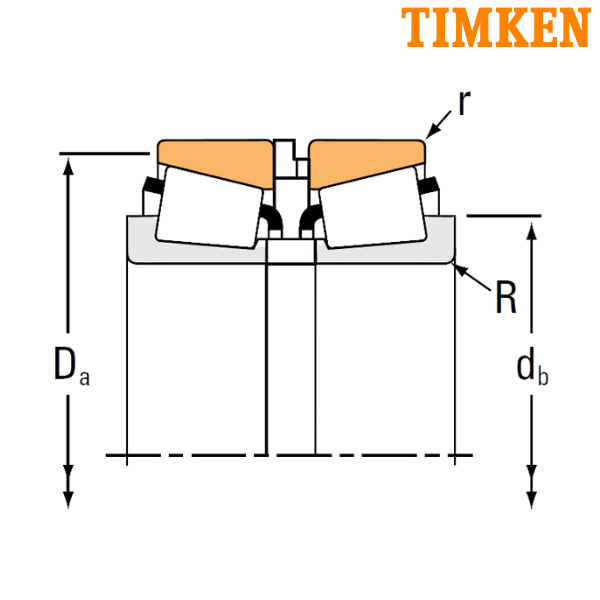

Backing Shoulder Diameter (db) mm - 125
Backing Shoulder Diameter (db) inch - 4.92
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 159
Backing Shoulder Diameter (Da) inch - 6.26
Weight of the Bearing without Snap Ring (kg) - 5.29
Weight of the Bearing without Snap Ring (lbs) - 11.7
Inner Spacer - JXH11010A
Outer Spacer - M822010ES
Snap Ring - K524660R
Inner Part Number - JM822049
Outer Part Number - JM822010
SR - SET-RIGHT Assembly
** Images are for representation purposes only
