Description
Brand - TIMKEN
Item Number - JM822049/JM822010 TIMKEN
Also Known As - JM822049 - JM822010
Category - Single Row Tapered Roller Bearing (TS Type)

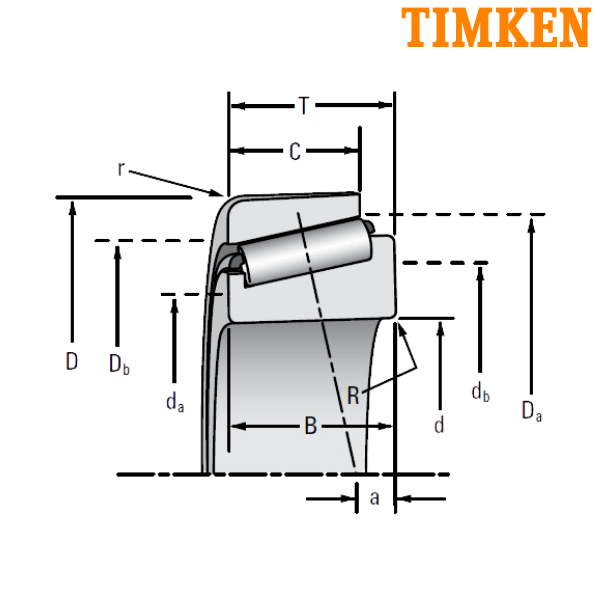

Bore Diameter (d) mm - 110
Bore Diameter (d) inch - 4.3307
Outer Diameter (D) mm - 165
Outer Diameter (D) inch - 6.4961
Width (T) mm - 35
Width (T) inch - 1.378
Dynamic Load Rating (C1) N - 227000
Dynamic Load Rating (C1) lbf - 51100
Factor (e) - 0.5
Factor (Y) - 1.21
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 58900
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 13200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 50100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 11300
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.18
Basic Static Radial Load Rating (C0) N - 356000
Basic Static Radial Load Rating (C0) lbf - 80100
Cone Width (B) mm - 35
Cone Width (B) inch - 1.378
Cup Width (C) mm - 26.5
Cup Width (C) inch - 1.0433
Effective Center Location (a) mm - 3
Effective Center Location (a) inch - 0.12
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 119
Cone Frontface Backing Diameter (da) inch - 4.69
Cone Backface Backing Diameter (db) mm - 125
Cone Backface Backing Diameter (db) inch - 4.92
Max Housing Fillet Radius (r) mm - 2.5
Max Housing Fillet Radius (r) inch - 0.1
Cup Frontface Backing Diameter (Da) mm - 159
Cup Frontface Backing Diameter (Da) inch - 6.26
Cup Backface Backing Diameter (Db) mm - 149
Cup Backface Backing Diameter (Db) inch - 5.87
Cage-Cone Backface Clearance (Aa) mm - 2.9
Cage-Cone Backface Clearance (Aa) inch - 0.11
Cage-Cone Frontface Clearance (Ab) mm - 2
Cage-Cone Frontface Clearance (Ab) inch - 0.08
Geometry Factor (G1) - 191.5
Geometry Factor (G2) - 45.8
Geometry Factor (Cg) - 0.1585
Weight (kg) - 2.44
Weight (lbs) - 5.39
Inner Part Number - JM822049
Outer Part Number - JM822010

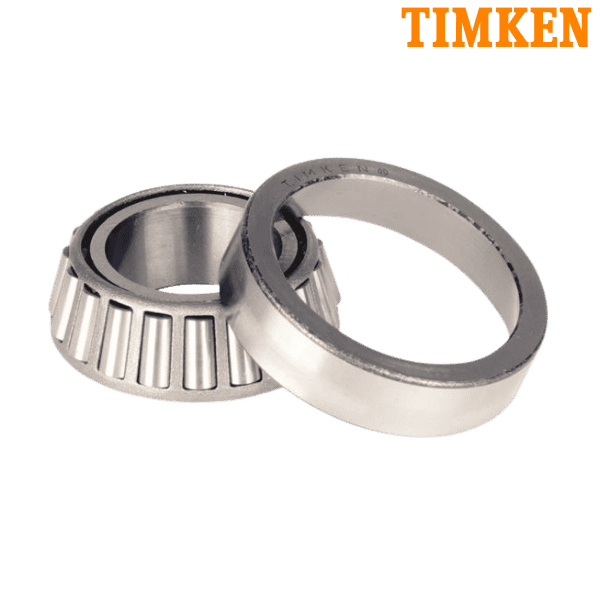

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
