Description
Brand - TIMKEN
Item Number - JP10044/JP10010 TIMKEN
Also Known As - JP10044 - JP10010
Category - Single Row Tapered Roller Bearing (TS Type)

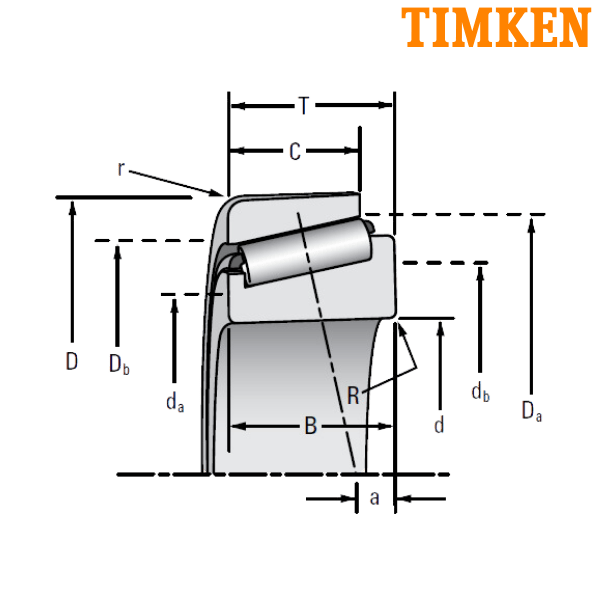

Bore Diameter (d) mm - 95
Bore Diameter (d) inch - 3.7402
Outer Diameter (D) mm - 145
Outer Diameter (D) inch - 5.7087
Width (T) mm - 24
Width (T) inch - 0.9449
Dynamic Load Rating (C1) N - 125000
Dynamic Load Rating (C1) lbf - 28200
Factor (e) - 0.47
Factor (Y) - 1.27
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 32500
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 7310
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 26300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 5920
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.24
Basic Static Radial Load Rating (C0) N - 172000
Basic Static Radial Load Rating (C0) lbf - 38700
Cone Width (B) mm - 22.5
Cone Width (B) inch - 0.8858
Cup Width (C) mm - 17.5
Cup Width (C) inch - 0.689
Effective Center Location (a) mm - 6.1
Effective Center Location (a) inch - 0.24
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 102
Cone Frontface Backing Diameter (da) inch - 4.02
Cone Backface Backing Diameter (db) mm - 108
Cone Backface Backing Diameter (db) inch - 4.25
Max Housing Fillet Radius (r) mm - 3
Max Housing Fillet Radius (r) inch - 0.12
Cup Frontface Backing Diameter (Da) mm - 140
Cup Frontface Backing Diameter (Da) inch - 5.51
Cup Backface Backing Diameter (Db) mm - 134
Cup Backface Backing Diameter (Db) inch - 5.28
Cage-Cone Backface Clearance (Aa) mm - 1.9
Cage-Cone Backface Clearance (Aa) inch - 0.07
Cage-Cone Frontface Clearance (Ab) mm - 3.3
Cage-Cone Frontface Clearance (Ab) inch - 0.13
Geometry Factor (G1) - 104
Geometry Factor (G2) - 40.9
Geometry Factor (Cg) - 0.1264
Weight (kg) - 1.26
Weight (lbs) - 2.79
Inner Part Number - JP10044
Outer Part Number - JP10010

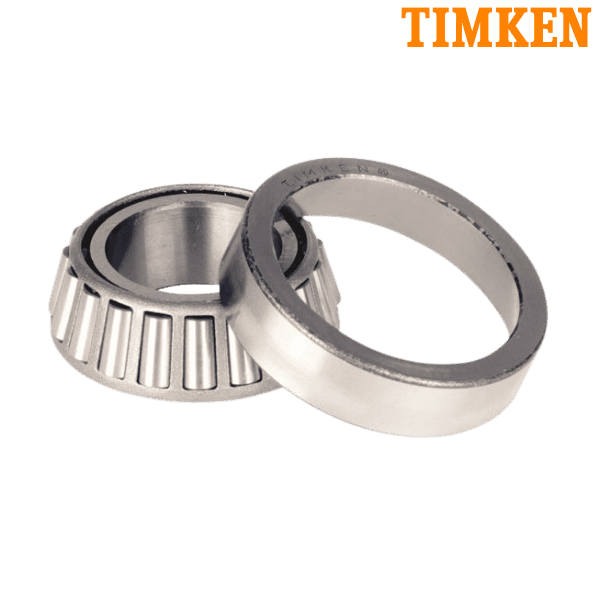

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
