JP10049/JP10010-B TIMKEN

Brand - TIMKEN
Item Number - JP10049/JP10010-B TIMKEN
Also Known As - JP10049 - JP10010-B
Category - Single Row Tapered Roller Bearing (TSF Type)

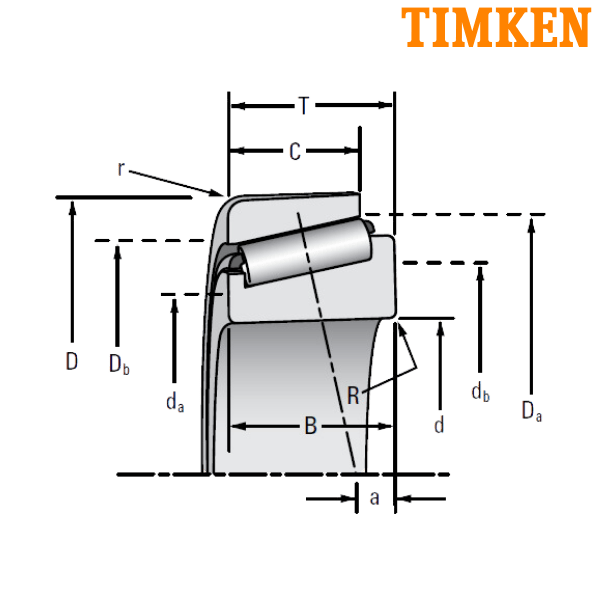

Bore Diameter (d) mm - 100
Bore Diameter (d) inch - 3.937
Outer Diameter (D) mm - 145
Outer Diameter (D) inch - 5.7087
Width (T1) mm - 10.5
Width (T1) inch - 0.4134
Dynamic Load Rating (C1) N - 125000
Dynamic Load Rating (C1) lbf - 28200
Factor (e) - 0.47
Factor (Y) - 1.27
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 32500
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 7310
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 26300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 5920
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.24
Basic Static Radial Load Rating (C0) N - 172000
Basic Static Radial Load Rating (C0) lbf - 38700
Cone Width (B) mm - 22.5
Cone Width (B) inch - 0.8858
Cup Width (C) mm - 17.5
Cup Width (C) inch - 0.689
Effective Center Location (a) mm - 6.1
Effective Center Location (a) inch - 0.24
Outer Diameter of Outer Ring Flange (D1) mm - 152
Outer Diameter of Outer Ring Flange (D1) inch - 5.9843
Flange Width (C2) mm - 4
Flange Width (C2) inch - 0.1575
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 106
Cone Frontface Backing Diameter (da) inch - 4.17
Cone Backface Backing Diameter (db) mm - 112
Cone Backface Backing Diameter (db) inch - 4.41
Cup Frontface Backing Diameter (Da) mm - 142
Cup Frontface Backing Diameter (Da) inch - 5.59
Geometry Factor (G1) - 104
Geometry Factor (G2) - 40.9
Geometry Factor (Cg) - 0.1264
Weight (kg) - 1.19
Weight (lbs) - 2.61
Inner Part Number - JP10049
Outer Part Number - JP10010-B
TSF - Single-Row Bearing with a Flange on the Outer Ring

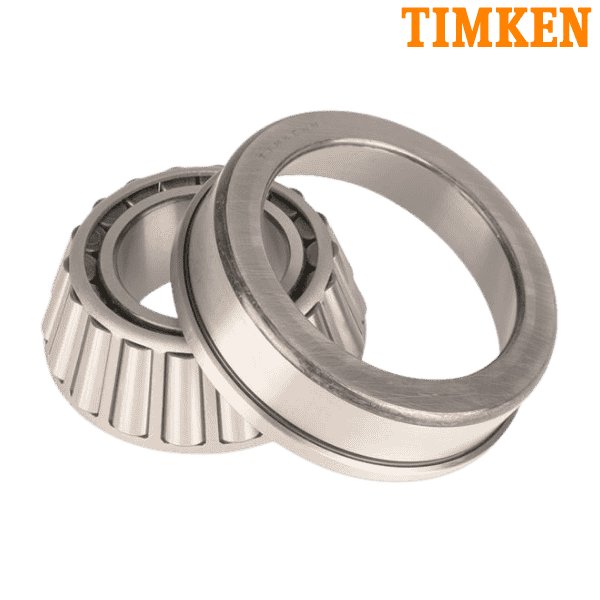

** Images are for representation purposes only
