JP14049/JP14010-B TIMKEN

Brand - TIMKEN
Item Number - JP14049/JP14010-B TIMKEN
Also Known As - JP14049 - JP14010-B
Category - Single Row Tapered Roller Bearing (TSF Type)

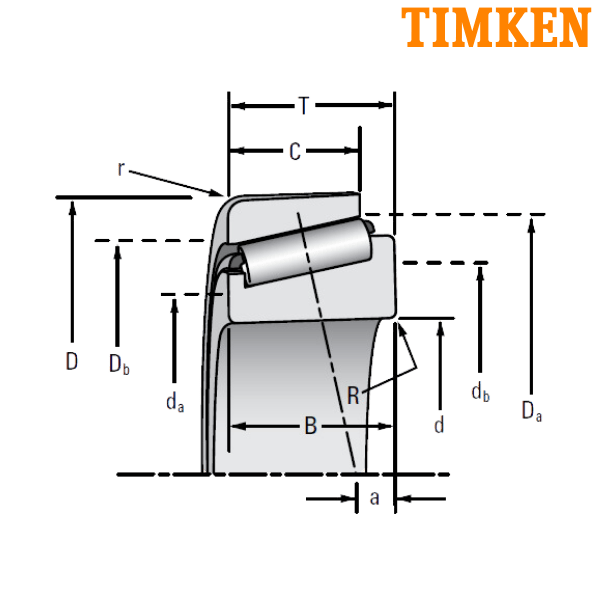

Bore Diameter (d) mm - 140
Bore Diameter (d) inch - 5.5118
Outer Diameter (D) mm - 195
Outer Diameter (D) inch - 7.6772
Width (T1) mm - 13
Width (T1) inch - 0.5118
Dynamic Load Rating (C1) N - 203000
Dynamic Load Rating (C1) lbf - 45700
Factor (e) - 0.5
Factor (Y) - 1.19
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 52700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 11800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 45400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 10200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.16
Basic Static Radial Load Rating (C0) N - 304000
Basic Static Radial Load Rating (C0) lbf - 68400
Cone Width (B) mm - 27
Cone Width (B) inch - 1.063
Cup Width (C) mm - 21
Cup Width (C) inch - 0.8268
Effective Center Location (a) mm - 11.9
Effective Center Location (a) inch - 0.47
Outer Diameter of Outer Ring Flange (D1) mm - 202
Outer Diameter of Outer Ring Flange (D1) inch - 7.9528
Flange Width (C2) mm - 5
Flange Width (C2) inch - 0.1969
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 148
Cone Frontface Backing Diameter (da) inch - 5.83
Cone Backface Backing Diameter (db) mm - 153
Cone Backface Backing Diameter (db) inch - 6.02
Cup Frontface Backing Diameter (Da) mm - 198
Cup Frontface Backing Diameter (Da) inch - 7.8
Geometry Factor (G1) - 219.5
Geometry Factor (G2) - 68.2
Geometry Factor (Cg) - 0.1133
Weight (kg) - 2.4
Weight (lbs) - 5.3
Inner Part Number - JP14049
Outer Part Number - JP14010-B

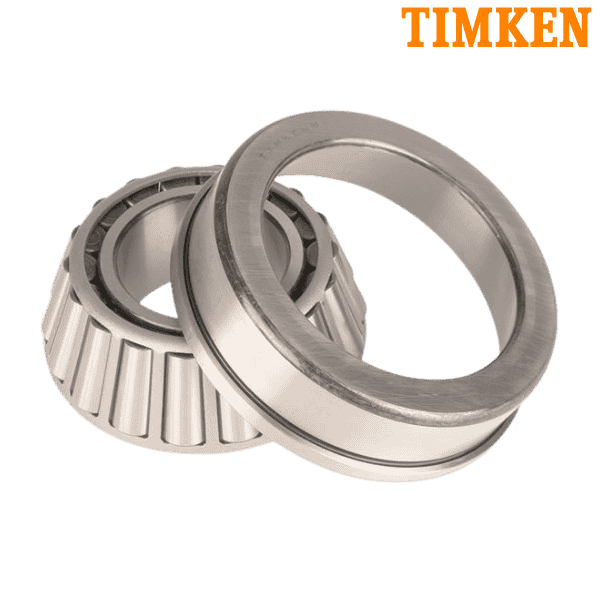

TSF - Single-Row Bearing with a Flange on the Outer Ring
