Description
Brand - TIMKEN
Item Number - JP6049/JP6010 TIMKEN
Also Known As - JP6049 - JP6010
Category - Single Row Tapered Roller Bearing (TS Type)

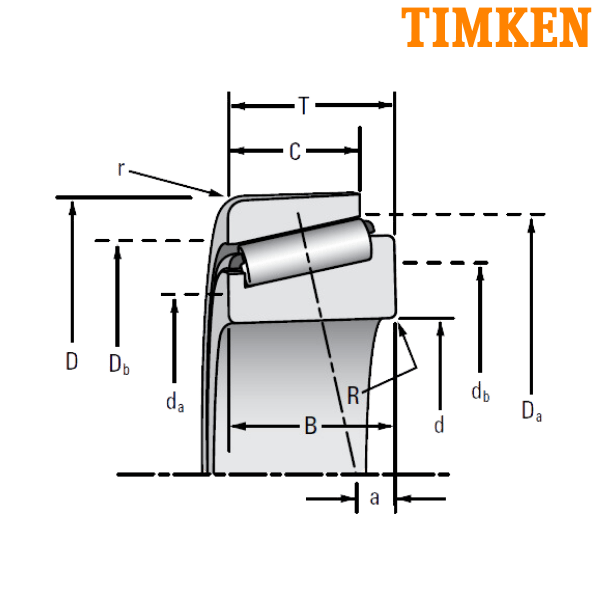

Bore Diameter (d) mm - 60
Bore Diameter (d) inch - 2.3622
Outer Diameter (D) mm - 100
Outer Diameter (D) inch - 3.937
Width (T) mm - 21
Width (T) inch - 0.8268
Dynamic Load Rating (C1) N - 87300
Dynamic Load Rating (C1) lbf - 19600
Factor (e) - 0.47
Factor (Y) - 1.27
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 22600
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 5090
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 18300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4120
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.24
Basic Static Radial Load Rating (C0) N - 101000
Basic Static Radial Load Rating (C0) lbf - 22800
Cone Width (B) mm - 20
Cone Width (B) inch - 0.7874
Cup Width (C) mm - 15.5
Cup Width (C) inch - 0.6102
Effective Center Location (a) mm - 1.3
Effective Center Location (a) inch - 0.05
Maximum Shaft Fillet Radius (R) mm - 2
Maximum Shaft Fillet Radius (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 66
Cone Frontface Backing Diameter (da) inch - 2.6
Cone Backface Backing Diameter (db) mm - 69
Cone Backface Backing Diameter (db) inch - 2.72
Max Housing Fillet Radius (r) mm - 2
Max Housing Fillet Radius (r) inch - 0.08
Cup Frontface Backing Diameter (Da) mm - 95.5
Cup Frontface Backing Diameter (Da) inch - 3.76
Cup Backface Backing Diameter (Db) mm - 91
Cup Backface Backing Diameter (Db) inch - 3.58
Cage-Cone Backface Clearance (Aa) mm - 1.4
Cage-Cone Backface Clearance (Aa) inch - 0.05
Cage-Cone Frontface Clearance (Ab) mm - 2.9
Cage-Cone Frontface Clearance (Ab) inch - 0.12
Geometry Factor (G1) - 39.5
Geometry Factor (G2) - 22.5
Geometry Factor (Cg) - 0.922
Weight (kg) - 0.59
Weight (lbs) - 1.31
Inner Part Number - JP6049
Outer Part Number - JP6010

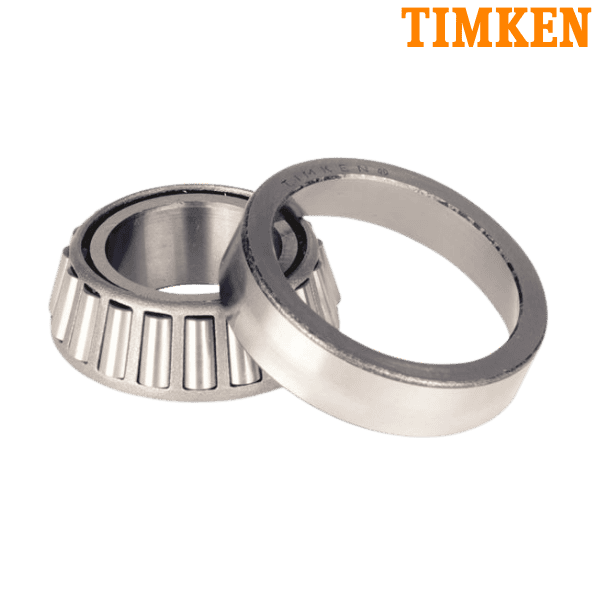

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
