Description
Brand - TIMKEN
Item Number - JP8049/JP8010 TIMKEN
Also Known As - JP8049 - JP8010
Category - Single Row Tapered Roller Bearing (TS Type)

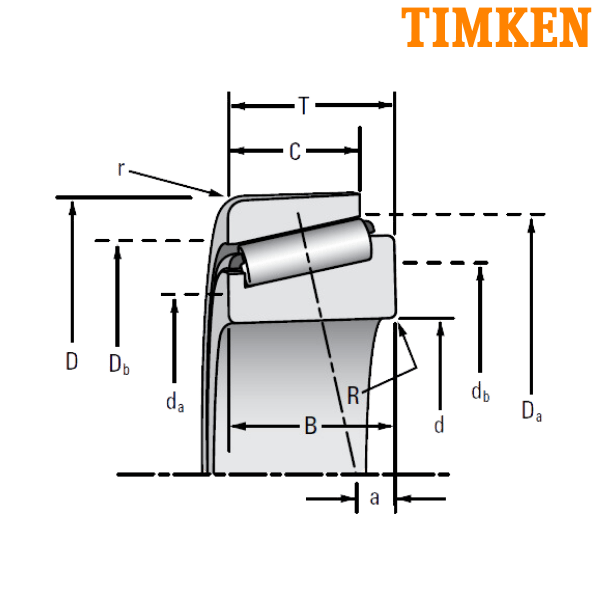

Bore Diameter (d) mm - 80
Bore Diameter (d) inch - 3.1496
Outer Diameter (D) mm - 125
Outer Diameter (D) inch - 4.9213
Width (T) mm - 24
Width (T) inch - 0.9449
Dynamic Load Rating (C1) N - 107000
Dynamic Load Rating (C1) lbf - 24000
Factor (e) - 0.45
Factor (Y) - 1.33
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 27700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 6230
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 21400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4820
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.29
Basic Static Radial Load Rating (C0) N - 141000
Basic Static Radial Load Rating (C0) lbf - 31800
Cone Width (B) mm - 22.5
Cone Width (B) inch - 0.8858
Cup Width (C) mm - 17.5
Cup Width (C) inch - 0.689
Effective Center Location (a) mm - 2.3
Effective Center Location (a) inch - 0.09
Maximum Shaft Fillet Radius (R) mm - 2
Maximum Shaft Fillet Radius (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 86
Cone Frontface Backing Diameter (da) inch - 3.39
Cone Backface Backing Diameter (db) mm - 89
Cone Backface Backing Diameter (db) inch - 3.5
Max Housing Fillet Radius (r) mm - 2
Max Housing Fillet Radius (r) inch - 0.08
Cup Frontface Backing Diameter (Da) mm - 120
Cup Frontface Backing Diameter (Da) inch - 4.72
Cup Backface Backing Diameter (Db) mm - 115
Cup Backface Backing Diameter (Db) inch - 4.53
Cage-Cone Backface Clearance (Aa) mm - 1.9
Cage-Cone Backface Clearance (Aa) inch - 0.07
Cage-Cone Frontface Clearance (Ab) mm - 3.5
Cage-Cone Frontface Clearance (Ab) inch - 0.14
Geometry Factor (G1) - 69.7
Geometry Factor (G2) - 37.4
Geometry Factor (Cg) - 0.1095
Weight (kg) - 0.96
Weight (lbs) - 2.1
Inner Part Number - JP8049
Outer Part Number - JP8010

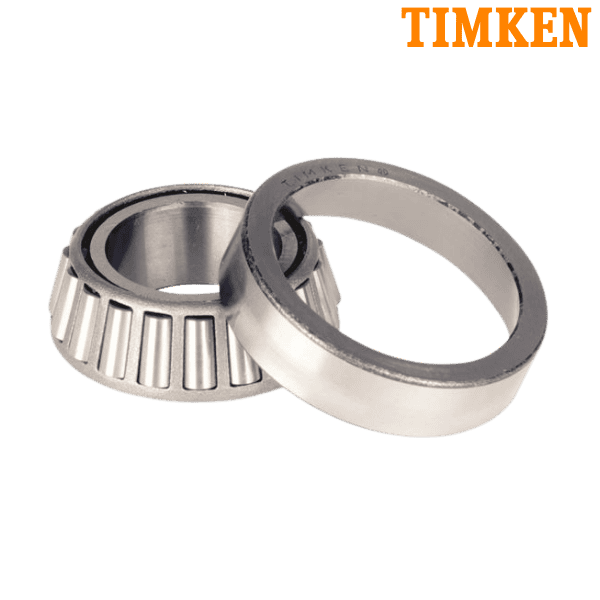

TS - Single Row Tapered Roller Bearing
** Images are for representation purposes only
