Description
Brand - NADELLA
Item Number - K15x18x14T NADELLA

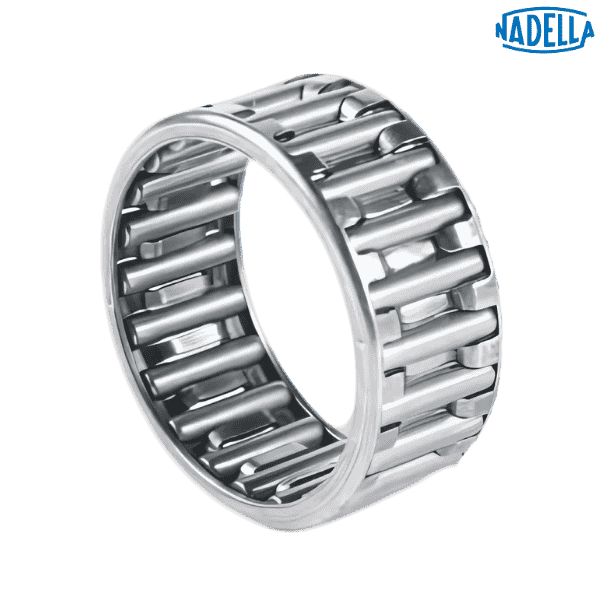

Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Diameter of the Inner Raceway (Fw) - 15 mm
Dimension (Ew) - 18 mm
Dimension (Bc) - 14 mm
Dynamic Load Rating (C) - 7.92 mm
Static Load Rating (C0) - 11.9 mm
Speed Rating with Grease - 13000 rpm
Speed Rating with Oil - 23000 rpm

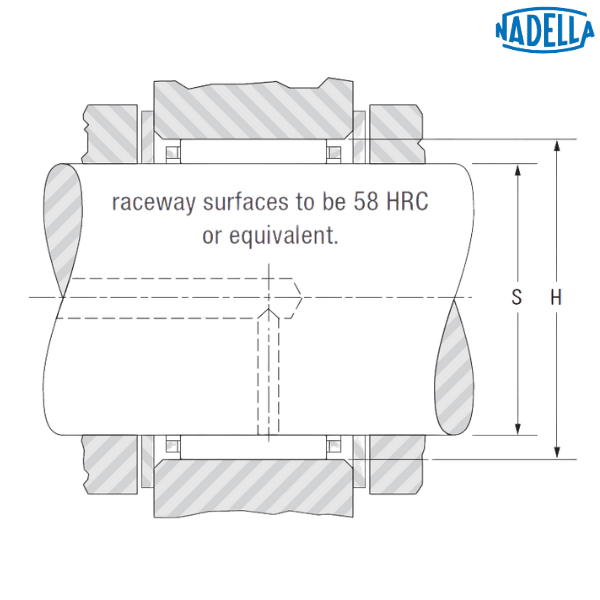

Maximum Mounting Dimension (S) - 15 mm
Minimum Mounting Dimension (S) - 14.992 mm
Maximum Mounting Dimension (H) - 18.017 mm
Minimum Mounting Dimension (H) - 18.006 mm
Weight - 0.003 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
♦♦ Images are for representation purposes only
Item Number - K15x18x14T NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Diameter of the Inner Raceway (Fw) - 15 mm
Dimension (Ew) - 18 mm
Dimension (Bc) - 14 mm
Dynamic Load Rating (C) - 7.92 mm
Static Load Rating (C0) - 11.9 mm
Speed Rating with Grease - 13000 rpm
Speed Rating with Oil - 23000 rpm
Maximum Mounting Dimension (S) - 15 mm
Minimum Mounting Dimension (S) - 14.992 mm
Maximum Mounting Dimension (H) - 18.017 mm
Minimum Mounting Dimension (H) - 18.006 mm
Weight - 0.003 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
♦♦ Images are for representation purposes only
