Description
Brand - NADELLA
Item Number - K29x34x27F NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 29 mm
Diameter of the Inner Raceway (Fw) - 29 mm
Dimension (Ew) - 34 mm
Dimension (Bc) - 27 mm
Dynamic Load Rating (C) - 28.9 mm
Static Load Rating (C0) - 54 mm
Speed Rating with Grease - 9700 rpm
Speed Rating with Oil - 15000 rpm

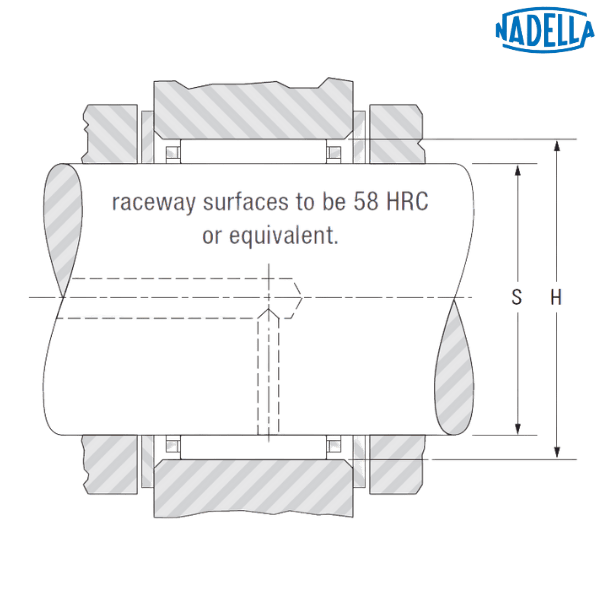

Maximum Mounting Dimension (S) - 29 mm
Minimum Mounting Dimension (S) - 28.991 mm
Maximum Mounting Dimension (H) - 34.009 mm
Minimum Mounting Dimension (H) - 0.033 mm
Weight - 0.033 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
F - Machined Cage

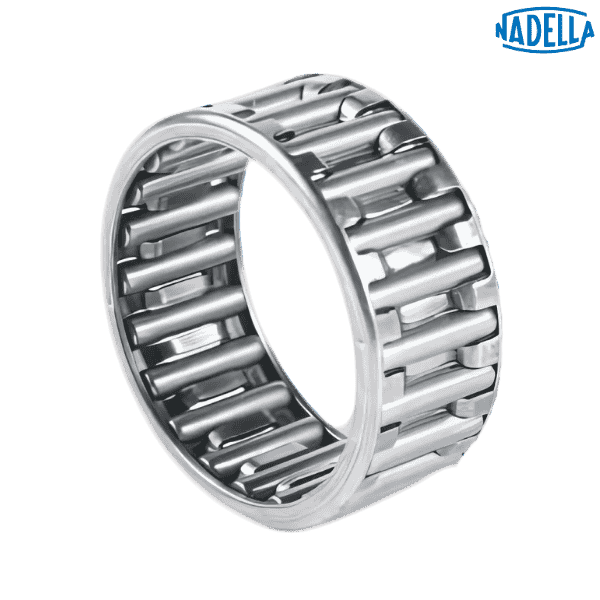

♦♦ Images are for representation purposes only
