K462-454 FAG

Brand - FAG
Item Number - K462-454 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 1.26
Inner Diameter (d) mm - 57.15
Inner Diameter (d) inch - 2.25
Outer Diameter (D) mm - 110
Outer Diameter (D) inch - 4.3307
Inner Ring Width (B) mm - 29.317
Inner Ring Width (B) inch - 1.1542
Outer Ring Width (C) mm - 27
Outer Ring Width (C) inch - 1.063
Total Width (T) mm - 27.795
Total Width (T) inch - 1.0943
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 2.3
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.09
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.08
Distance Between The Apexes of The Pressure Cones (a) mm - 22
Distance Between The Apexes of The Pressure Cones (a) inch - 0.866
Guidance Rib Diameter of Inner Ring (d1) mm - 80.3
Guidance Rib Diameter of Inner Ring (d1) inch - 3.161

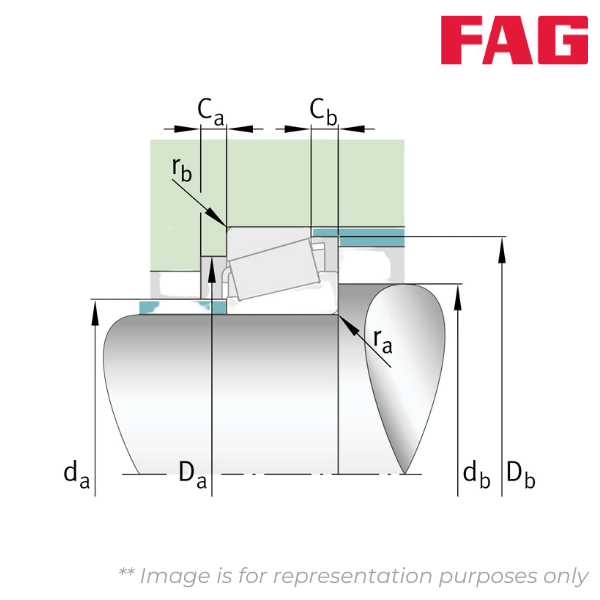

Maximum Diameter of Shaft Shoulder (da) mm - 67
Maximum Diameter of Shaft Shoulder (da) inch - 2.638
Minimum diameter of shaft shoulder (db) mm - 70
Minimum diameter of shaft shoulder (db) inch - 2.756
Minimum Diameter of Housing Shoulder (Da) mm - 96
Minimum Diameter of Housing Shoulder (Da) inch - 3.78
Minimum Diameter of Housing Shoulder (Db) mm - 100
Minimum Diameter of Housing Shoulder (Db) inch - 3.937
Minimum Axial Space (Ca) mm - 2
Minimum Axial Space (Ca) inch - 0.079
Minimum Axial Space (Cb) mm - 2
Minimum Axial Space (Cb) inch - 0.079
Maximum Fillet Radius of Shaft (ra) mm - 2.3
Maximum Fillet Radius of Shaft (ra) inch - 0.09
Maximum Fillet Radius of Housing (rb) mm - 2
Maximum Fillet Radius of Housing (rb) inch - 0.08
Basic Dynamic Radial Load Rating (Cr) kN - 111
Basic Static Radial Load Rating (C0r) kN - 141
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.34
Dynamic Axial Load Factor (Y) - 1.79
Static Axial Load Factor (Y0) - 0.98
Fatigue Load Limit, Radial (Cur) kN - 17
Limiting Speed (nG) min–1 - 6900
