Description
Brand - NADELLA

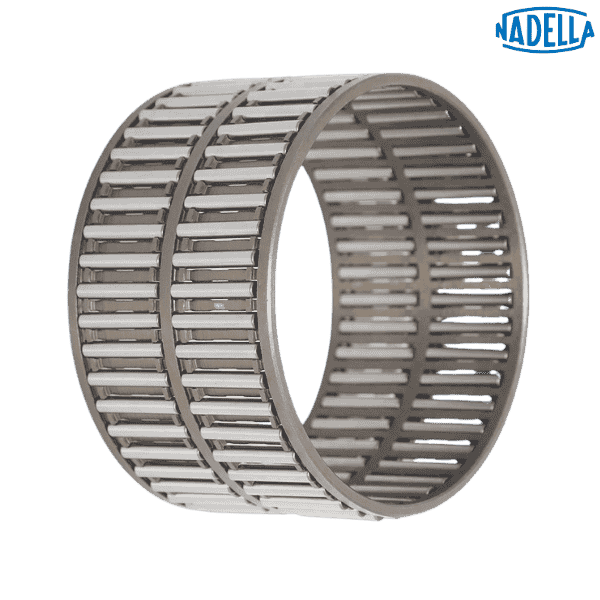

Item Number - K46x53x36HZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 46 mm

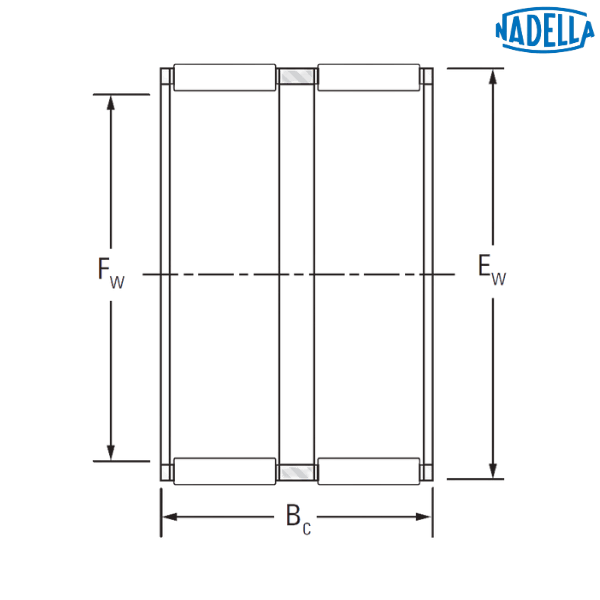

Diameter of the Inner Raceway (Fw) - 46 mm
Dimension (Ew) - 53 mm
Dimension (Bc) - 36 mm
Dynamic Load Rating (C) - 48.6 mm
Static Load Rating (C0) - 96.7 mm
Speed Rating with Grease - 6100 rpm
Speed Rating with Oil - 9300 rpm

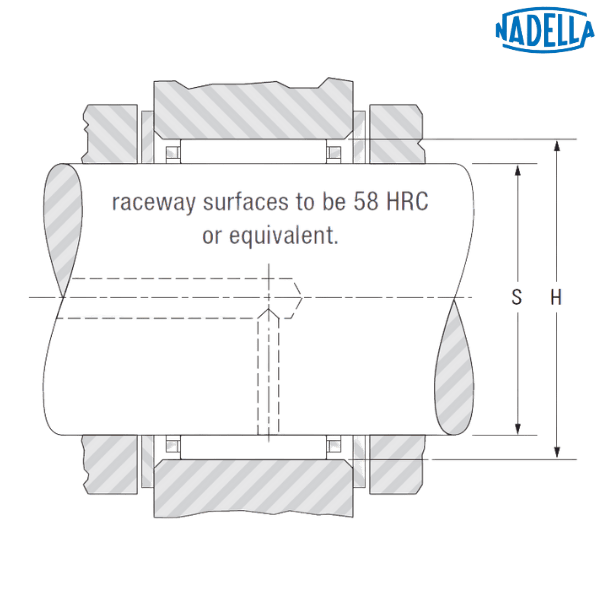

Maximum Mounting Dimension (S) - 46 mm
Minimum Mounting Dimension (S) - 45.989 mm
Maximum Mounting Dimension (H) - 53.029 mm
Minimum Mounting Dimension (H) - 53.01 mm
Weight - 0.1 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
ZW - Double Row
♦♦ Images are for representation purposes only
Item Number - K46x53x36HZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 46 mm
Diameter of the Inner Raceway (Fw) - 46 mm
Dimension (Ew) - 53 mm
Dimension (Bc) - 36 mm
Dynamic Load Rating (C) - 48.6 mm
Static Load Rating (C0) - 96.7 mm
Speed Rating with Grease - 6100 rpm
Speed Rating with Oil - 9300 rpm
Maximum Mounting Dimension (S) - 46 mm
Minimum Mounting Dimension (S) - 45.989 mm
Maximum Mounting Dimension (H) - 53.029 mm
Minimum Mounting Dimension (H) - 53.01 mm
Weight - 0.1 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
ZW - Double Row
♦♦ Images are for representation purposes only
