Description
Brand - NADELLA

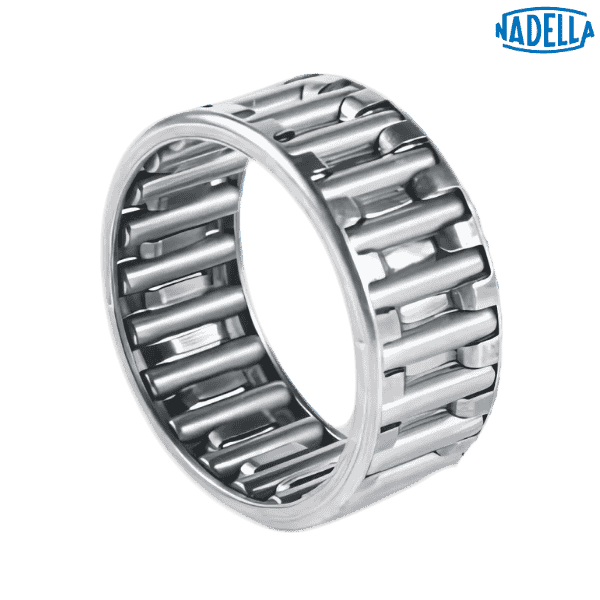

Item Number - K50x55x30FV1 NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Diameter of the Inner Raceway (Fw) - 50 mm
Dimension (Ew) - 55 mm
Dimension (Bc) - 30 mm
Dynamic Load Rating (C) - 38.2 mm
Static Load Rating (C0) - 92.4 mm
Speed Rating with Grease - 5400 rpm
Speed Rating with Oil - 8400 rpm

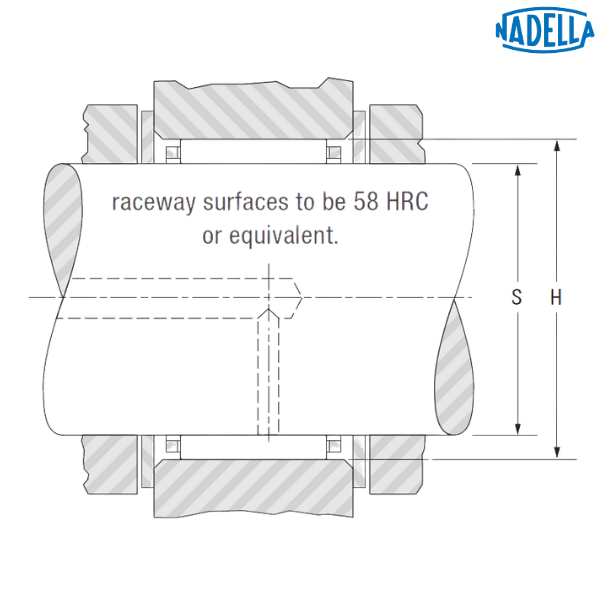

Maximum Mounting Dimension (S) - 50 mm
Minimum Mounting Dimension (S) - 49.989 mm
Maximum Mounting Dimension (H) - 55.029 mm
Minimum Mounting Dimension (H) - 55.01 mm
Weight - 0.057 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
FV - Machined Cage, Hardened and Tempered
♦♦ Images are for representation purposes only
Item Number - K50x55x30FV1 NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 50 mm
Diameter of the Inner Raceway (Fw) - 50 mm
Dimension (Ew) - 55 mm
Dimension (Bc) - 30 mm
Dynamic Load Rating (C) - 38.2 mm
Static Load Rating (C0) - 92.4 mm
Speed Rating with Grease - 5400 rpm
Speed Rating with Oil - 8400 rpm
Maximum Mounting Dimension (S) - 50 mm
Minimum Mounting Dimension (S) - 49.989 mm
Maximum Mounting Dimension (H) - 55.029 mm
Minimum Mounting Dimension (H) - 55.01 mm
Weight - 0.057 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
FV - Machined Cage, Hardened and Tempered
♦♦ Images are for representation purposes only
