Description
Brand - NADELLA

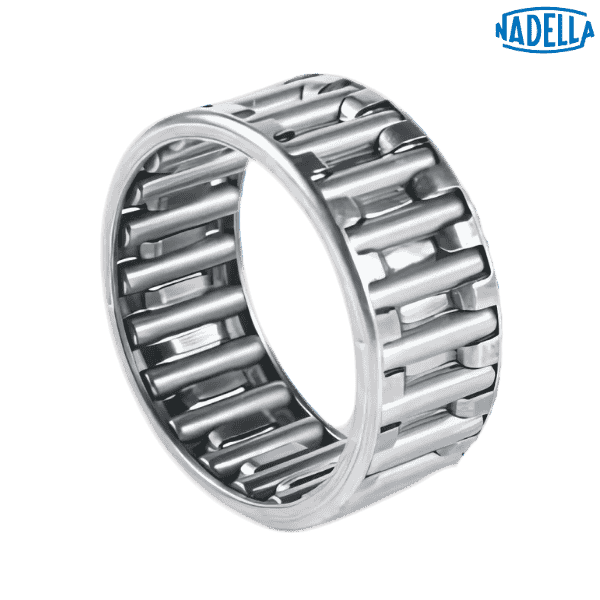

Item Number - K52x57x17H NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 52 mm
Diameter of the Inner Raceway (Fw) - 52 mm
Dimension (Ew) - 57 mm
Dimension (Bc) - 17 mm
Dynamic Load Rating (C) - 21.4 mm
Static Load Rating (C0) - 44.3 mm
Speed Rating with Grease - 5200 rpm
Speed Rating with Oil - 8000 rpm

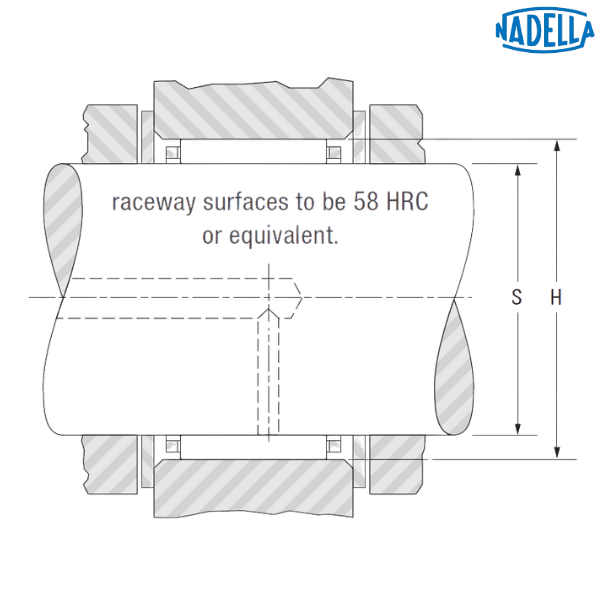

Maximum Mounting Dimension (S) - 52 mm
Minimum Mounting Dimension (S) - 51.987 mm
Maximum Mounting Dimension (H) - 57.029 mm
Minimum Mounting Dimension (H) - 57.01 mm
Weight - 0.035 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
♦♦ Images are for representation purposes only
Item Number - K52x57x17H NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 52 mm
Diameter of the Inner Raceway (Fw) - 52 mm
Dimension (Ew) - 57 mm
Dimension (Bc) - 17 mm
Dynamic Load Rating (C) - 21.4 mm
Static Load Rating (C0) - 44.3 mm
Speed Rating with Grease - 5200 rpm
Speed Rating with Oil - 8000 rpm
Maximum Mounting Dimension (S) - 52 mm
Minimum Mounting Dimension (S) - 51.987 mm
Maximum Mounting Dimension (H) - 57.029 mm
Minimum Mounting Dimension (H) - 57.01 mm
Weight - 0.035 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
H - Hardened Steel Cage
♦♦ Images are for representation purposes only
