Description
Brand - NADELLA

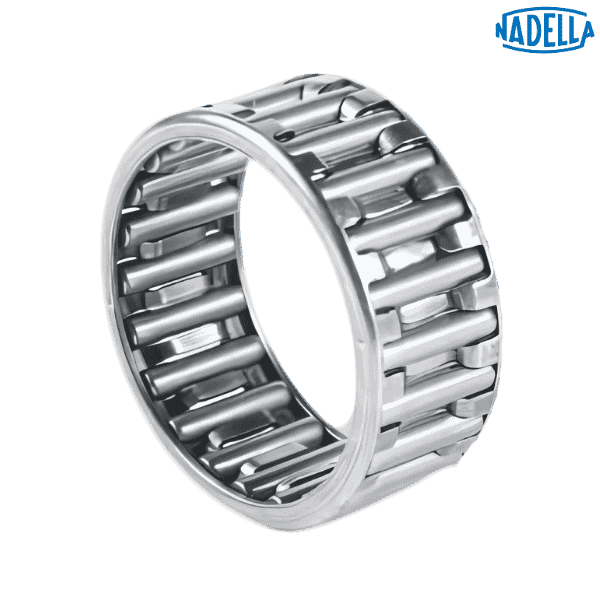

Item Number - K55x63x20 NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 55 mm
Diameter of the Inner Raceway (Fw) - 55 mm
Dimension (Ew) - 63 mm
Dimension (Bc) - 20 mm
Dynamic Load Rating (C) - 40.3 mm
Static Load Rating (C0) - 73.5 mm
Speed Rating with Grease - 5000 rpm
Speed Rating with Oil - 7800 rpm

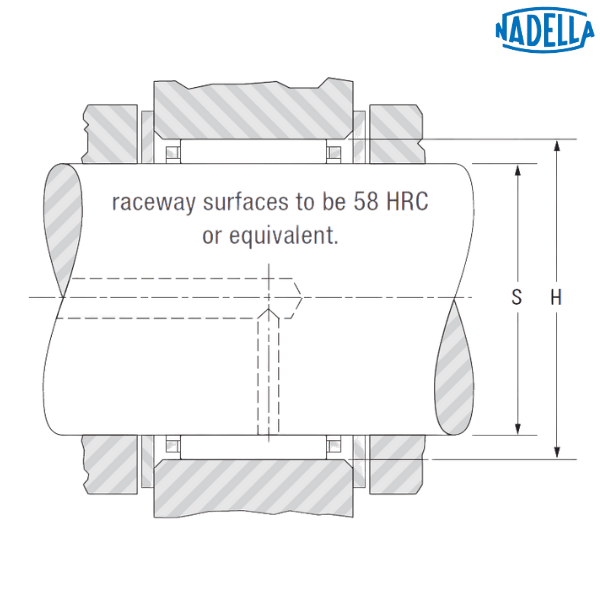

Maximum Mounting Dimension (S) - 55 mm
Minimum Mounting Dimension (S) - 54.987 mm
Maximum Mounting Dimension (H) - 63.029 mm
Minimum Mounting Dimension (H) - 63.01 mm
Weight - 0.072 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
♦♦ Images are for representation purposes only
