Description
Brand - NADELLA
Item Number - K5x8x8TN NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 5 mm
Diameter of the Inner Raceway (Fw) - 5 mm
Dimension (Ew) - 8 mm
Dimension (Bc) - 8 mm
Dynamic Load Rating (C) - 2.18 mm
Static Load Rating (C0) - 1.71 mm
Speed Rating with Grease - 31000 rpm
Speed Rating with Oil - 47000 rpm

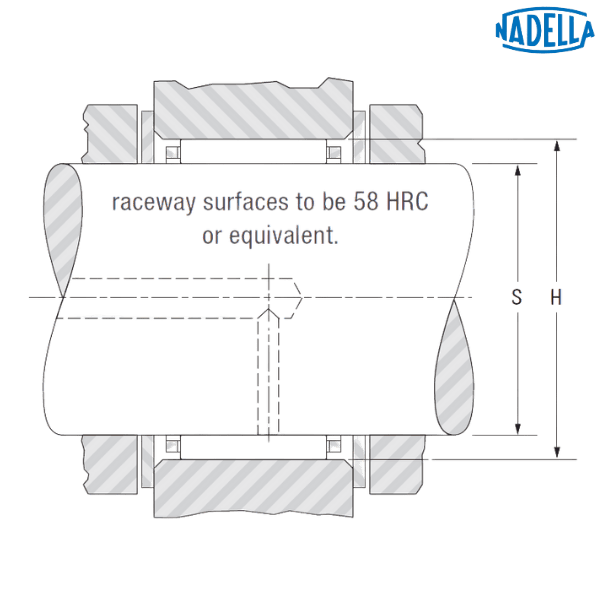

Maximum Mounting Dimension (S) - 5 mm
Minimum Mounting Dimension (S) - 4.995 mm
Maximum Mounting Dimension (H) - 8.014 mm
Minimum Mounting Dimension (H) - 8.005 mm
Weight - 0.0007 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
TN - Molded Cage of Reinforced Engineered Polymer

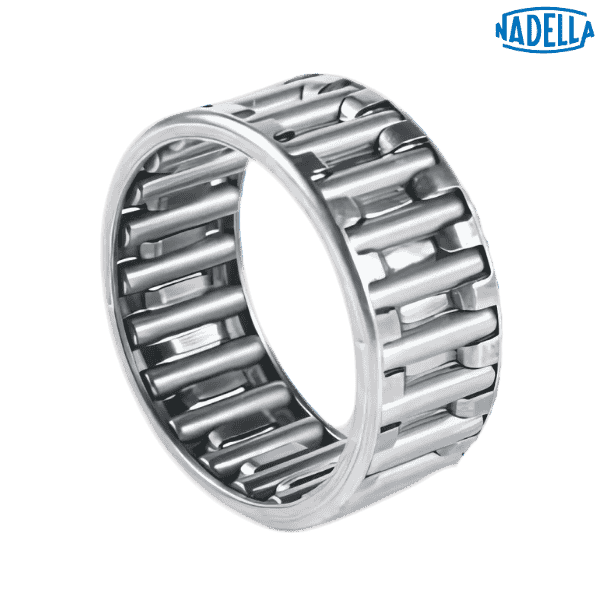

♦♦ Images are for representation purposes only
Item Number - K5x8x8TN NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 5 mm
Diameter of the Inner Raceway (Fw) - 5 mm
Dimension (Ew) - 8 mm
Dimension (Bc) - 8 mm
Dynamic Load Rating (C) - 2.18 mm
Static Load Rating (C0) - 1.71 mm
Speed Rating with Grease - 31000 rpm
Speed Rating with Oil - 47000 rpm
Maximum Mounting Dimension (S) - 5 mm
Minimum Mounting Dimension (S) - 4.995 mm
Maximum Mounting Dimension (H) - 8.014 mm
Minimum Mounting Dimension (H) - 8.005 mm
Weight - 0.0007 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
TN - Molded Cage of Reinforced Engineered Polymer
♦♦ Images are for representation purposes only
