Description
Brand - FAG
Item Number - K64452-A-64700-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 3.51
Inner Diameter (d) mm - 114.975
Inner Diameter (d) inch - 4.5266
Outer Diameter (D) mm - 177.8
Outer Diameter (D) inch - 7
Inner Ring Width (B) mm - 41.275
Inner Ring Width (B) inch - 1.625
Outer Ring Width (C) mm - 30.162
Outer Ring Width (C) inch - 1.1875
Total Width (T) mm - 41.275
Total Width (T) inch - 1.625
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 9.7
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.38
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.13
Distance Between The Apexes of The Pressure Cones (a) mm - 43
Distance Between The Apexes of The Pressure Cones (a) inch - 1.693
Guidance Rib Diameter of Inner Ring (d1) mm - 147.3
Guidance Rib Diameter of Inner Ring (d1) inch - 5.799

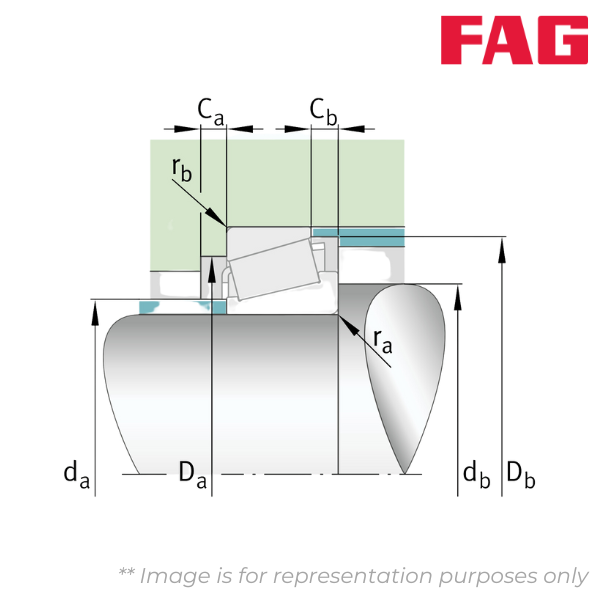

Maximum Diameter of Shaft Shoulder (da) mm - 125
Maximum Diameter of Shaft Shoulder (da) inch - 4.921
Minimum diameter of shaft shoulder (db) mm - 131
Minimum diameter of shaft shoulder (db) inch - 5.157
Minimum Diameter of Housing Shoulder (Da) mm - 160
Minimum Diameter of Housing Shoulder (Da) inch - 6.299
Minimum Diameter of Housing Shoulder (Db) mm - 172
Minimum Diameter of Housing Shoulder (Db) inch - 6.772
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 9
Minimum Axial Space (Cb) inch - 0.354
Maximum Fillet Radius of Shaft (ra) mm - 9.7
Maximum Fillet Radius of Shaft (ra) inch - 0.38
Maximum Fillet Radius of Housing (rb) mm - 3.3
Maximum Fillet Radius of Housing (rb) inch - 0.13
Basic Dynamic Radial Load Rating (Cr) kN - 285
Basic Static Radial Load Rating (C0r) kN - 395
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.52
Dynamic Axial Load Factor (Y) - 1.16
Static Axial Load Factor (Y0) - 0.64
Fatigue Load Limit, Radial (Cur) kN - 57
Limiting Speed (nG) min–1 - 4150
