KG375AR0 RBC

Brand - RBC
Item Number - KG375AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

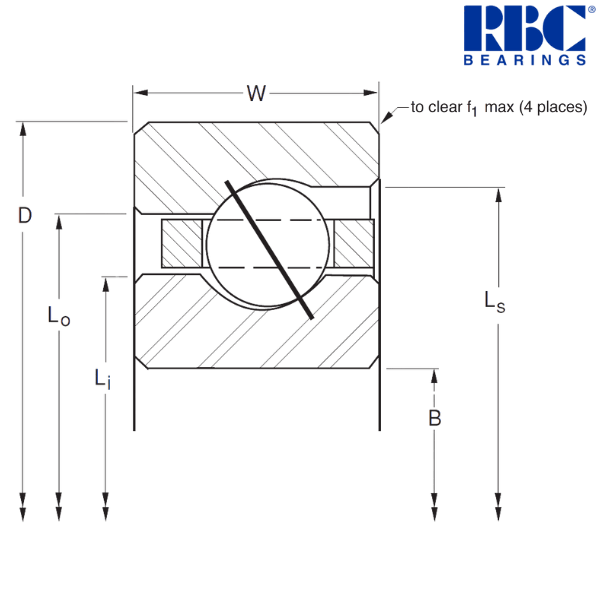

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 37.5 inch
Outside Diameter (D) - 39.5 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 38.242 inch
Land Diameter of Outer Ring (Lo) - 38.758 inch
Land Diameter of Counter Bore (Ls) - 39 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 154 pcs.
Approximate Weight - 29 lbs
Radial Static Load - 72980 lbf
Radial Dynamic Load - 18568 lbf
Thrust Static Load - 210700 lbf
Thrust Dynamic Load - 53140 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 952.5 mm
Outside Diameter (D) - 1003.3 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 971.35 mm
Land Diameter of Outer Ring (Lo) - 984.45 mm
Land Diameter of Counter Bore (Ls) - 990.6 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 13.166 kg
Radial Static Load - 324631 N
Radial Dynamic Load - 82595 N
Thrust Static Load - 937240 N
Thrust Dynamic Load - 236379 N

Description of Suffixes and Prefixes :
K - No seals or shields
G - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

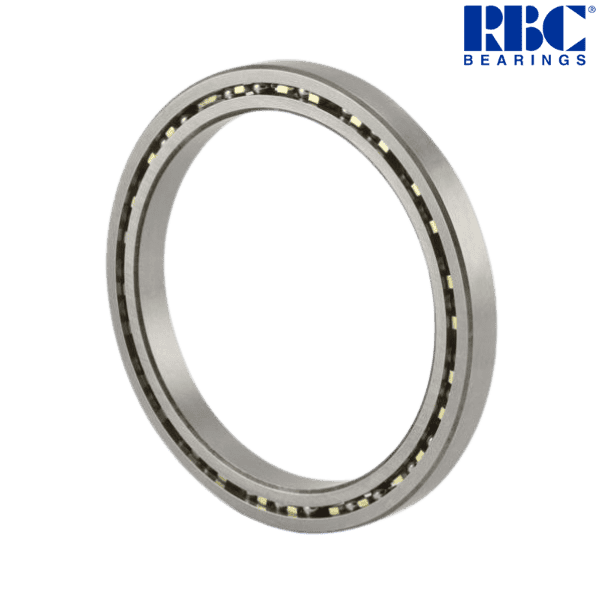

♦ ♦ Images are for representation purposes only
