Description
Brand - FAG
Item Number - KHM218238-HM218210 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 3.02
Inner Diameter (d) mm - 79.975
Inner Diameter (d) inch - 3.1486
Outer Diameter (D) mm - 146.975
Outer Diameter (D) inch - 5.7864
Inner Ring Width (B) mm - 40
Inner Ring Width (B) inch - 1.5748
Outer Ring Width (C) mm - 32.5
Outer Ring Width (C) inch - 1.2795
Total Width (T) mm - 40
Total Width (T) inch - 1.5748
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 7.1
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.28
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.6
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.14
Distance Between The Apexes of The Pressure Cones (a) mm - 32
Distance Between The Apexes of The Pressure Cones (a) inch - 1.26
Guidance Rib Diameter of Inner Ring (d1) mm - 117.5
Guidance Rib Diameter of Inner Ring (d1) inch - 4.626

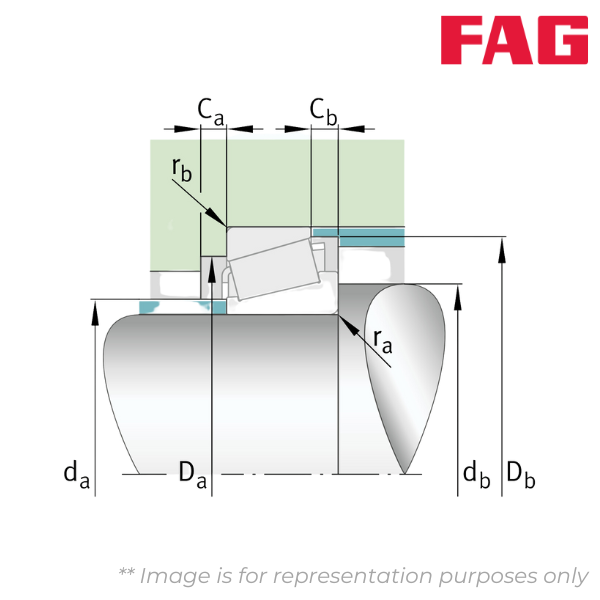

Maximum Diameter of Shaft Shoulder (da) mm - 91
Maximum Diameter of Shaft Shoulder (da) inch - 3.583
Minimum diameter of shaft shoulder (db) mm - 104
Minimum diameter of shaft shoulder (db) inch - 4.094
Minimum Diameter of Housing Shoulder (Da) mm - 133
Minimum Diameter of Housing Shoulder (Da) inch - 5.236
Minimum Diameter of Housing Shoulder (Db) mm - 141
Minimum Diameter of Housing Shoulder (Db) inch - 5.551
Minimum Axial Space (Ca) mm - 7
Minimum Axial Space (Ca) inch - 0.276
Minimum Axial Space (Cb) mm - 7.5
Minimum Axial Space (Cb) inch - 0.295
Maximum Fillet Radius of Shaft (ra) mm - 7.1
Maximum Fillet Radius of Shaft (ra) inch - 0.28
Maximum Fillet Radius of Housing (rb) mm - 3.6
Maximum Fillet Radius of Housing (rb) inch - 0.14
Basic Dynamic Radial Load Rating (Cr) kN - 233
Basic Static Radial Load Rating (C0r) kN - 355
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.33
Dynamic Axial Load Factor (Y) - 1.8
Static Axial Load Factor (Y0) - 0.99
Fatigue Load Limit, Radial (Cur) kN - 43
Limiting Speed (nG) min–1 - 4600
