KHM903249-HM903210 FAG

Brand - FAG
Item Number - KHM903249-HM903210 FAG

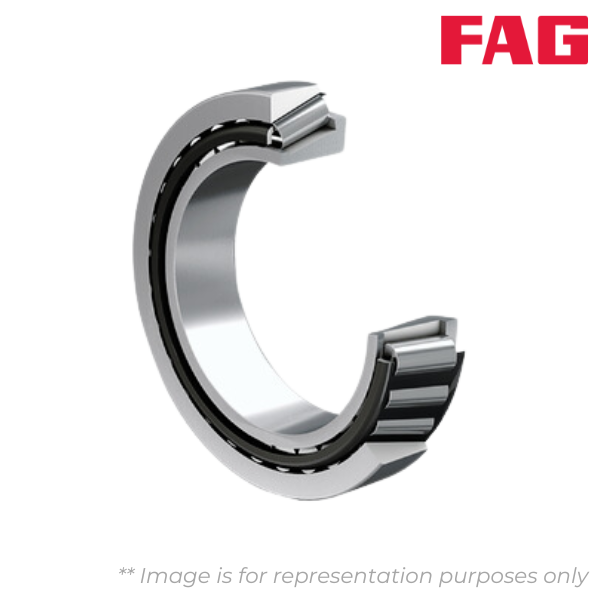

Category - Tapered Roller Bearing Single Row
Weight (m) kg - 1.01

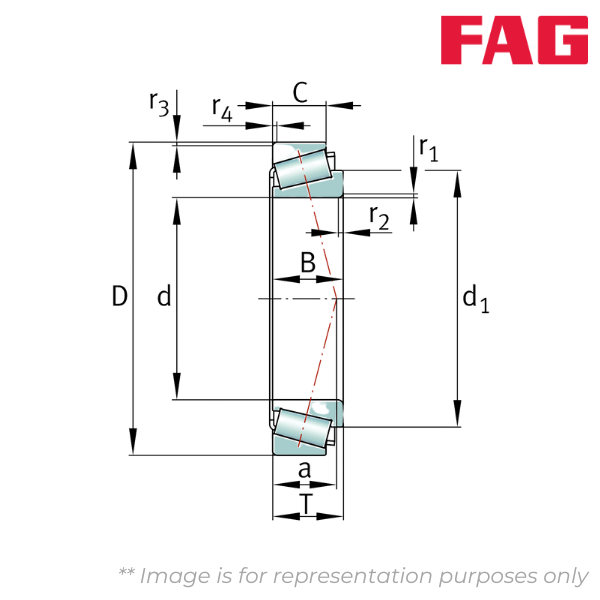

Inner Diameter (d) mm - 44.45
Inner Diameter (d) inch - 1.75
Outer Diameter (D) mm - 95.25
Outer Diameter (D) inch - 3.75
Inner Ring Width (B) mm - 28.575
Inner Ring Width (B) inch - 1.125
Outer Ring Width (C) mm - 22.225
Outer Ring Width (C) inch - 0.875
Total Width (T) mm - 30.958
Total Width (T) inch - 1.2188
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 0.8
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.03
Distance Between The Apexes of The Pressure Cones (a) mm - 31
Distance Between The Apexes of The Pressure Cones (a) inch - 1.22
Guidance Rib Diameter of Inner Ring (d1) mm - 72
Guidance Rib Diameter of Inner Ring (d1) inch - 2.835

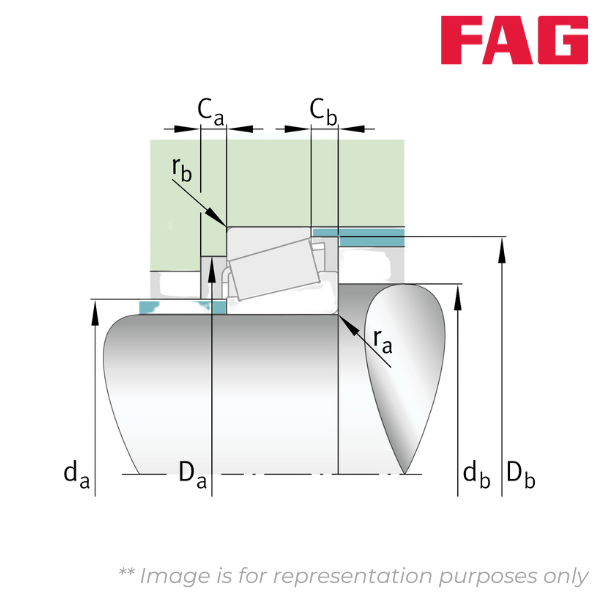

Maximum Diameter of Shaft Shoulder (da) mm - 54
Maximum Diameter of Shaft Shoulder (da) inch - 2.126
Minimum diameter of shaft shoulder (db) mm - 65
Minimum diameter of shaft shoulder (db) inch - 2.559
Minimum Diameter of Housing Shoulder (Da) mm - 81
Minimum Diameter of Housing Shoulder (Da) inch - 3.189
Minimum Diameter of Housing Shoulder (Db) mm - 91
Minimum Diameter of Housing Shoulder (Db) inch - 3.583
Minimum Axial Space (Ca) mm - 2
Minimum Axial Space (Ca) inch - 0.079
Minimum Axial Space (Cb) mm - 6.5
Minimum Axial Space (Cb) inch - 0.256
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 0.8
Maximum Fillet Radius of Housing (rb) inch - 0.03
Basic Dynamic Radial Load Rating (Cr) kN - 99
Basic Static Radial Load Rating (C0r) kN - 120
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.74
Dynamic Axial Load Factor (Y) - 0.81
Static Axial Load Factor (Y0) - 0.45
Fatigue Load Limit, Radial (Cur) kN - 14.4
Limiting Speed (nG) min–1 - 7500
