KJHM522649-JHM522610-XL FAG

Brand - FAG
Item Number - KJHM522649-JHM522610-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 5.03
Inner Diameter (d) mm - 110
Inner Diameter (d) inch - 4.3307
Outer Diameter (D) mm - 180
Outer Diameter (D) inch - 7.0866
Inner Ring Width (B) mm - 46
Inner Ring Width (B) inch - 1.811
Outer Ring Width (C) mm - 38
Outer Ring Width (C) inch - 1.4961
Total Width (T) mm - 47
Total Width (T) inch - 1.8504
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.12
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.1
Distance Between The Apexes of The Pressure Cones (a) mm - 41
Distance Between The Apexes of The Pressure Cones (a) inch - 1.614
Guidance Rib Diameter of Inner Ring (d1) mm - 144.5
Guidance Rib Diameter of Inner Ring (d1) inch - 5.689

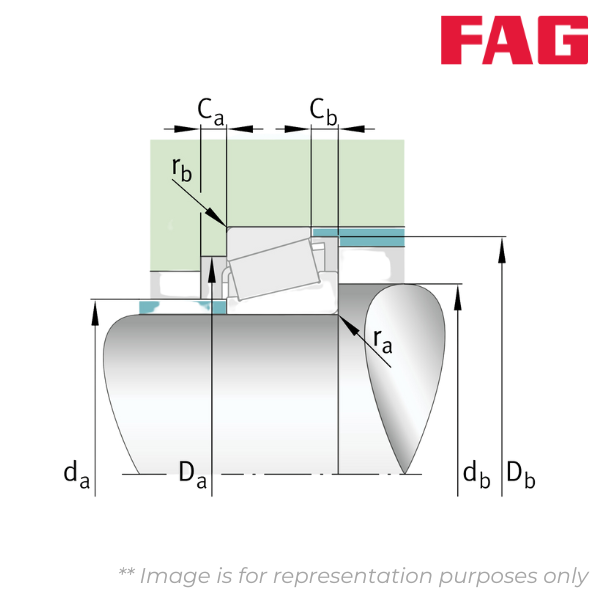

Maximum Diameter of Shaft Shoulder (da) mm - 122
Maximum Diameter of Shaft Shoulder (da) inch - 4.803
Minimum diameter of shaft shoulder (db) mm - 127
Minimum diameter of shaft shoulder (db) inch - 5
Minimum Diameter of Housing Shoulder (Da) mm - 162
Minimum Diameter of Housing Shoulder (Da) inch - 6.378
Minimum Diameter of Housing Shoulder (Db) mm - 172
Minimum Diameter of Housing Shoulder (Db) inch - 6.772
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 7
Minimum Axial Space (Cb) inch - 0.276
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Shaft (ra) inch - 0.12
Maximum Fillet Radius of Housing (rb) mm - 2.5
Maximum Fillet Radius of Housing (rb) inch - 0.1
Basic Dynamic Radial Load Rating (Cr) kN - 380
Basic Static Radial Load Rating (C0r) kN - 510
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.41
Dynamic Axial Load Factor (Y) - 1.48
Static Axial Load Factor (Y0) - 0.81
Fatigue Load Limit, Radial (Cur) kN - 76
Limiting Speed (nG) min–1 - 4100
