KJM207049-JM207010 FAG

Brand - FAG
Item Number - KJM207049-JM207010 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.8
Inner Diameter (d) mm - 55
Inner Diameter (d) inch - 2.1654
Outer Diameter (D) mm - 95
Outer Diameter (D) inch - 3.7402
Inner Ring Width (B) mm - 29
Inner Ring Width (B) inch - 1.1417
Outer Ring Width (C) mm - 23.5
Outer Ring Width (C) inch - 0.9252
Total Width (T) mm - 29
Total Width (T) inch - 1.1417
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 1.5
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.06
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.1
Distance Between The Apexes of The Pressure Cones (a) mm - 21
Distance Between The Apexes of The Pressure Cones (a) inch - 0.827
Guidance Rib Diameter of Inner Ring (d1) mm - 74.7
Guidance Rib Diameter of Inner Ring (d1) inch - 2.941

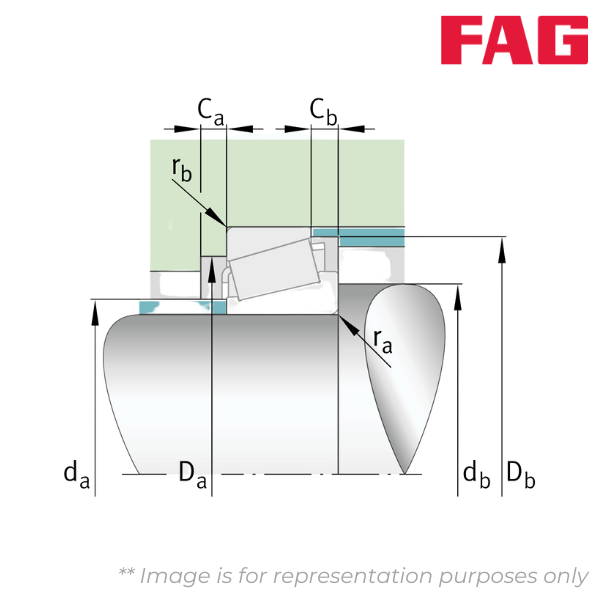

Maximum Diameter of Shaft Shoulder (da) mm - 62
Maximum Diameter of Shaft Shoulder (da) inch - 2.441
Minimum diameter of shaft shoulder (db) mm - 64
Minimum diameter of shaft shoulder (db) inch - 2.52
Minimum Diameter of Housing Shoulder (Da) mm - 85
Minimum Diameter of Housing Shoulder (Da) inch - 3.346
Minimum Diameter of Housing Shoulder (Db) mm - 91
Minimum Diameter of Housing Shoulder (Db) inch - 3.583
Minimum Axial Space (Ca) mm - 4.5
Minimum Axial Space (Ca) inch - 0.177
Minimum Axial Space (Cb) mm - 5.5
Minimum Axial Space (Cb) inch - 0.217
Maximum Fillet Radius of Shaft (ra) mm - 1.5
Maximum Fillet Radius of Shaft (ra) inch - 0.06
Maximum Fillet Radius of Housing (rb) mm - 2.5
Maximum Fillet Radius of Housing (rb) inch - 0.1
Basic Dynamic Radial Load Rating (Cr) kN - 111
Basic Static Radial Load Rating (C0r) kN - 152
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.33
Dynamic Axial Load Factor (Y) - 1.79
Static Axial Load Factor (Y0) - 0.99
Fatigue Load Limit, Radial (Cur) kN - 19
Limiting Speed (nG) min–1 - 7400
