KJM515649-JM515610 FAG

Brand - FAG
Item Number - KJM515649-JM515610 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 1.74
Inner Diameter (d) mm - 80
Inner Diameter (d) inch - 3.1496
Outer Diameter (D) mm - 130
Outer Diameter (D) inch - 5.1181
Inner Ring Width (B) mm - 34
Inner Ring Width (B) inch - 1.3386
Outer Ring Width (C) mm - 28.5
Outer Ring Width (C) inch - 1.122
Total Width (T) mm - 35
Total Width (T) inch - 1.378
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.12
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.1
Distance Between The Apexes of The Pressure Cones (a) mm - 29
Distance Between The Apexes of The Pressure Cones (a) inch - 1.142
Guidance Rib Diameter of Inner Ring (d1) mm - 105.4
Guidance Rib Diameter of Inner Ring (d1) inch - 4.15

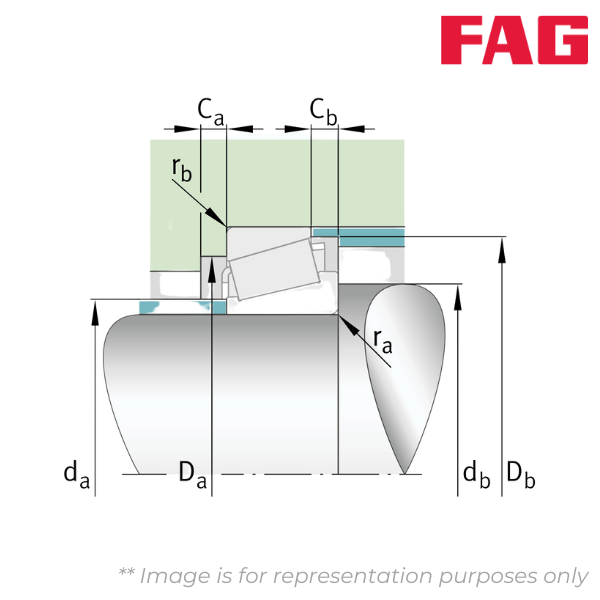

Maximum Diameter of Shaft Shoulder (da) mm - 88
Maximum Diameter of Shaft Shoulder (da) inch - 3.465
Minimum diameter of shaft shoulder (db) mm - 94
Minimum diameter of shaft shoulder (db) inch - 3.701
Minimum Diameter of Housing Shoulder (Da) mm - 117
Minimum Diameter of Housing Shoulder (Da) inch - 4.606
Minimum Diameter of Housing Shoulder (Db) mm - 125
Minimum Diameter of Housing Shoulder (Db) inch - 4.921
Minimum Axial Space (Ca) mm - 4.5
Minimum Axial Space (Ca) inch - 0.177
Minimum Axial Space (Cb) mm - 6.5
Minimum Axial Space (Cb) inch - 0.256
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Shaft (ra) inch - 0.12
Maximum Fillet Radius of Housing (rb) mm - 2.5
Maximum Fillet Radius of Housing (rb) inch - 0.1
Basic Dynamic Radial Load Rating (Cr) kN - 160
Basic Static Radial Load Rating (C0r) kN - 239
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.39
Dynamic Axial Load Factor (Y) - 1.54
Static Axial Load Factor (Y0) - 0.85
Fatigue Load Limit, Radial (Cur) kN - 29.5
Limiting Speed (nG) min–1 - 5300
