KJM624649-JM624610 FAG

Brand - FAG
Item Number - KJM624649-JM624610 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 3
Inner Diameter (d) mm - 120
Inner Diameter (d) inch - 4.7244
Outer Diameter (D) mm - 180
Outer Diameter (D) inch - 7.0866
Inner Ring Width (B) mm - 36
Inner Ring Width (B) inch - 1.4173
Outer Ring Width (C) mm - 26
Outer Ring Width (C) inch - 1.0236
Total Width (T) mm - 36
Total Width (T) inch - 1.4173
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.06
Distance Between The Apexes of The Pressure Cones (a) mm - 37
Distance Between The Apexes of The Pressure Cones (a) inch - 1.457
Guidance Rib Diameter of Inner Ring (d1) mm - 149.6
Guidance Rib Diameter of Inner Ring (d1) inch - 5.89

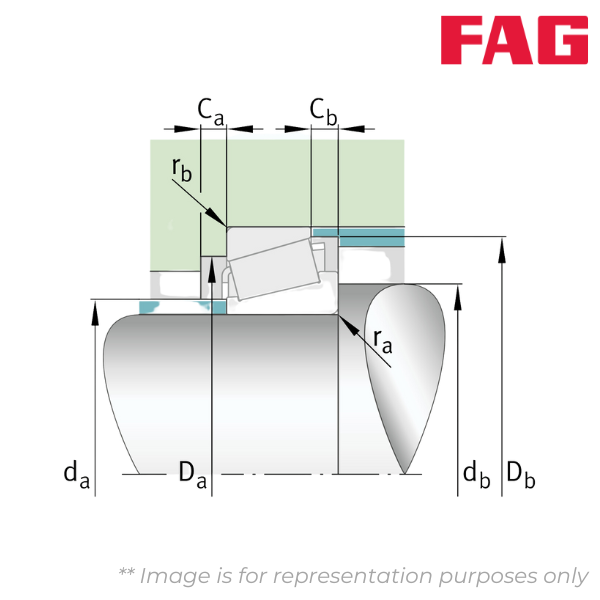

Maximum Diameter of Shaft Shoulder (da) mm - 128
Maximum Diameter of Shaft Shoulder (da) inch - 5.039
Minimum diameter of shaft shoulder (db) mm - 135
Minimum diameter of shaft shoulder (db) inch - 5.315
Minimum Diameter of Housing Shoulder (Da) mm - 166
Minimum Diameter of Housing Shoulder (Da) inch - 6.535
Minimum Diameter of Housing Shoulder (Db) mm - 173
Minimum Diameter of Housing Shoulder (Db) inch - 6.811
Minimum Axial Space (Ca) mm - 5.5
Minimum Axial Space (Ca) inch - 0.217
Minimum Axial Space (Cb) mm - 9.5
Minimum Axial Space (Cb) inch - 0.374
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 1.5
Maximum Fillet Radius of Housing (rb) inch - 0.06
Basic Dynamic Radial Load Rating (Cr) kN - 221
Basic Static Radial Load Rating (C0r) kN - 355
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.43
Dynamic Axial Load Factor (Y) - 1.4
Static Axial Load Factor (Y0) - 0.77
Fatigue Load Limit, Radial (Cur) kN - 40
Limiting Speed (nG) min–1 - 3750
