KJM720249-JM720210 FAG

Brand - FAG
Item Number - KJM720249-JM720210 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 2.38
Inner Diameter (d) mm - 100
Inner Diameter (d) inch - 3.937
Outer Diameter (D) mm - 155
Outer Diameter (D) inch - 6.1024
Inner Ring Width (B) mm - 35
Inner Ring Width (B) inch - 1.378
Outer Ring Width (C) mm - 28
Outer Ring Width (C) inch - 1.1024
Total Width (T) mm - 36
Total Width (T) inch - 1.4173
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.12
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.1
Distance Between The Apexes of The Pressure Cones (a) mm - 36
Distance Between The Apexes of The Pressure Cones (a) inch - 1.417
Guidance Rib Diameter of Inner Ring (d1) mm - 127.5
Guidance Rib Diameter of Inner Ring (d1) inch - 5.02

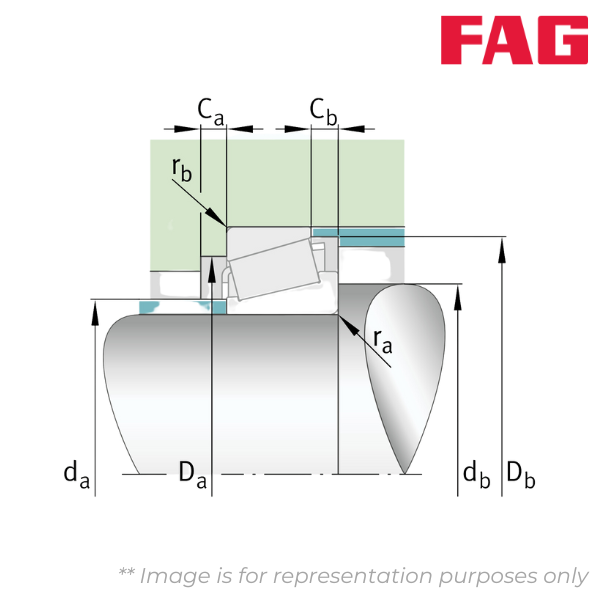

Maximum Diameter of Shaft Shoulder (da) mm - 109
Maximum Diameter of Shaft Shoulder (da) inch - 4.291
Minimum diameter of shaft shoulder (db) mm - 115
Minimum diameter of shaft shoulder (db) inch - 4.528
Minimum Diameter of Housing Shoulder (Da) mm - 140
Minimum Diameter of Housing Shoulder (Da) inch - 5.512
Minimum Diameter of Housing Shoulder (Db) mm - 149
Minimum Diameter of Housing Shoulder (Db) inch - 5.866
Minimum Axial Space (Ca) mm - 4
Minimum Axial Space (Ca) inch - 0.157
Minimum Axial Space (Cb) mm - 6.5
Minimum Axial Space (Cb) inch - 0.256
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Shaft (ra) inch - 0.12
Maximum Fillet Radius of Housing (rb) mm - 2.5
Maximum Fillet Radius of Housing (rb) inch - 0.1
Basic Dynamic Radial Load Rating (Cr) kN - 187
Basic Static Radial Load Rating (C0r) kN - 305
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.47
Dynamic Axial Load Factor (Y) - 1.27
Static Axial Load Factor (Y0) - 0.7
Fatigue Load Limit, Radial (Cur) kN - 36
Limiting Speed (nG) min–1 - 4300
