KJM736149-JM736110 FAG

Brand - FAG
Item Number - KJM736149-JM736110 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 6.8
Inner Diameter (d) mm - 180
Inner Diameter (d) inch - 7.0866
Outer Diameter (D) mm - 250
Outer Diameter (D) inch - 9.8425
Inner Ring Width (B) mm - 45
Inner Ring Width (B) inch - 1.7717
Outer Ring Width (C) mm - 37
Outer Ring Width (C) inch - 1.4567
Total Width (T) mm - 47
Total Width (T) inch - 1.8504
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.12
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.1
Distance Between The Apexes of The Pressure Cones (a) mm - 54
Distance Between The Apexes of The Pressure Cones (a) inch - 2.126
Guidance Rib Diameter of Inner Ring (d1) mm - 217
Guidance Rib Diameter of Inner Ring (d1) inch - 8.543

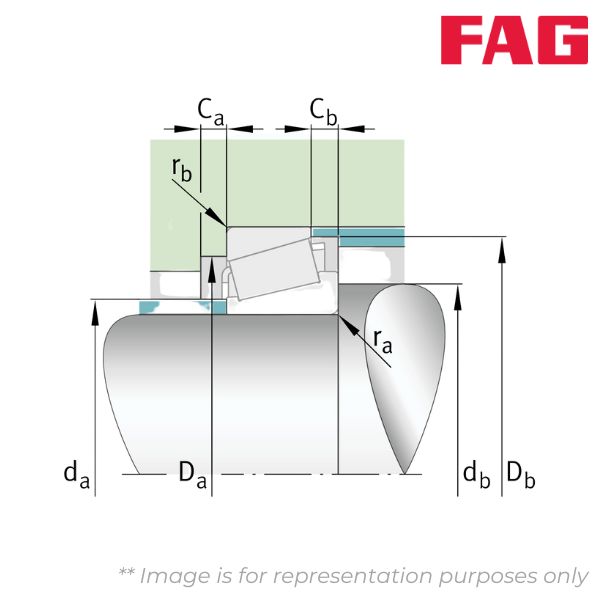

Maximum Diameter of Shaft Shoulder (da) mm - 190.5
Maximum Diameter of Shaft Shoulder (da) inch - 7.5
Minimum diameter of shaft shoulder (db) mm - 196
Minimum diameter of shaft shoulder (db) inch - 7.717
Minimum Diameter of Housing Shoulder (Da) mm - 232
Minimum Diameter of Housing Shoulder (Da) inch - 9.134
Minimum Diameter of Housing Shoulder (Db) mm - 242.6
Minimum Diameter of Housing Shoulder (Db) inch - 9.551
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 8
Minimum Axial Space (Cb) inch - 0.315
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Shaft (ra) inch - 0.12
Maximum Fillet Radius of Housing (rb) mm - 2.5
Maximum Fillet Radius of Housing (rb) inch - 0.1
Basic Dynamic Radial Load Rating (Cr) kN - 360
Basic Static Radial Load Rating (C0r) kN - 710
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.48
Dynamic Axial Load Factor (Y) - 1.25
Static Axial Load Factor (Y0) - 0.69
Fatigue Load Limit, Radial (Cur) kN - 84
Limiting Speed (nG) min–1 - 2600
