KJM738249-JM738210 FAG

Brand - FAG
Item Number - KJM738249-JM738210 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 7.06
Inner Diameter (d) mm - 190
Inner Diameter (d) inch - 7.4803
Outer Diameter (D) mm - 260
Outer Diameter (D) inch - 10.2362
Inner Ring Width (B) mm - 44
Inner Ring Width (B) inch - 1.7323
Outer Ring Width (C) mm - 36.5
Outer Ring Width (C) inch - 1.437
Total Width (T) mm - 46
Total Width (T) inch - 1.811
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.12
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 2.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.1
Distance Between The Apexes of The Pressure Cones (a) mm - 55
Distance Between The Apexes of The Pressure Cones (a) inch - 2.165
Guidance Rib Diameter of Inner Ring (d1) mm - 226
Guidance Rib Diameter of Inner Ring (d1) inch - 8.898

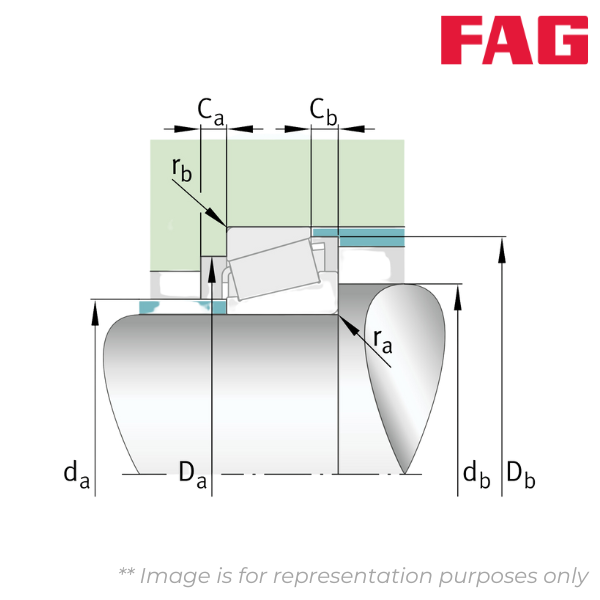

Maximum Diameter of Shaft Shoulder (da) mm - 200
Maximum Diameter of Shaft Shoulder (da) inch - 7.874
Minimum diameter of shaft shoulder (db) mm - 206
Minimum diameter of shaft shoulder (db) inch - 8.11
Minimum Diameter of Housing Shoulder (Da) mm - 242
Minimum Diameter of Housing Shoulder (Da) inch - 9.528
Minimum Diameter of Housing Shoulder (Db) mm - 252
Minimum Diameter of Housing Shoulder (Db) inch - 9.921
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 7.5
Minimum Axial Space (Cb) inch - 0.295
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Shaft (ra) inch - 0.12
Maximum Fillet Radius of Housing (rb) mm - 2.5
Maximum Fillet Radius of Housing (rb) inch - 0.1
Basic Dynamic Radial Load Rating (Cr) kN - 370
Basic Static Radial Load Rating (C0r) kN - 750
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.48
Dynamic Axial Load Factor (Y) - 1.26
Static Axial Load Factor (Y0) - 0.69
Fatigue Load Limit, Radial (Cur) kN - 89
Limiting Speed (nG) min–1 - 2490
