Description
Brand - FAG
Item Number - KL163149-L163110-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 20.9
Inner Diameter (d) mm - 355.6
Inner Diameter (d) inch - 14
Outer Diameter (D) mm - 444.5
Outer Diameter (D) inch - 17.5
Inner Ring Width (B) mm - 60.325
Inner Ring Width (B) inch - 2.375
Outer Ring Width (C) mm - 47.625
Outer Ring Width (C) inch - 1.875
Total Width (T) mm - 60.325
Total Width (T) inch - 2.375
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.13
Distance Between The Apexes of The Pressure Cones (a) mm - 67
Distance Between The Apexes of The Pressure Cones (a) inch - 2.638
Guidance Rib Diameter of Inner Ring (d1) mm - 397.5
Guidance Rib Diameter of Inner Ring (d1) inch - 15.65

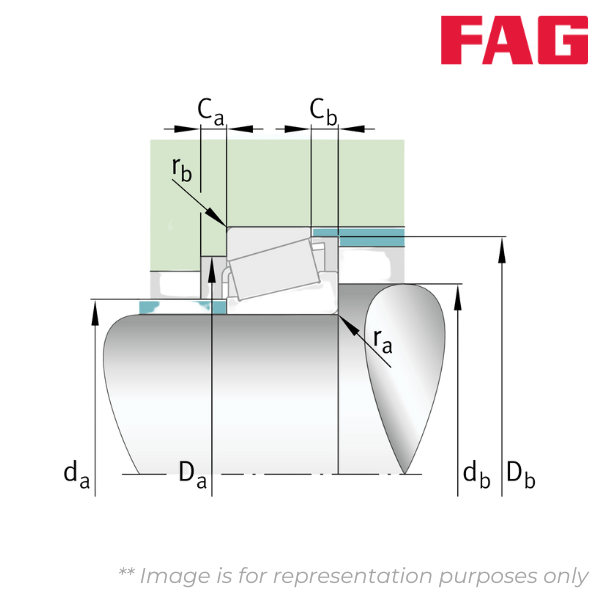

Maximum Diameter of Shaft Shoulder (da) mm - 370
Maximum Diameter of Shaft Shoulder (da) inch - 14.567
Minimum diameter of shaft shoulder (db) mm - 374
Minimum diameter of shaft shoulder (db) inch - 14.724
Minimum Diameter of Housing Shoulder (Da) mm - 416
Minimum Diameter of Housing Shoulder (Da) inch - 16.378
Minimum Diameter of Housing Shoulder (Db) mm - 430
Minimum Diameter of Housing Shoulder (Db) inch - 16.929
Minimum Axial Space (Ca) mm - 7
Minimum Axial Space (Ca) inch - 0.276
Minimum Axial Space (Cb) mm - 13
Minimum Axial Space (Cb) inch - 0.512
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 3.3
Maximum Fillet Radius of Housing (rb) inch - 0.13
Basic Dynamic Radial Load Rating (Cr) kN - 860
Basic Static Radial Load Rating (C0r) kN - 1880
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.31
Dynamic Axial Load Factor (Y) - 1.95
Static Axial Load Factor (Y0) - 1.07
Fatigue Load Limit, Radial (Cur) kN - 215
Limiting Speed (nG) min–1 - 1590
