Description
Brand - FAG
Item Number - KL860049-L860010-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 14.6
Inner Diameter (d) mm - 330.2
Inner Diameter (d) inch - 13
Outer Diameter (D) mm - 415.925
Outer Diameter (D) inch - 16.375
Inner Ring Width (B) mm - 47.625
Inner Ring Width (B) inch - 1.875
Outer Ring Width (C) mm - 34.925
Outer Ring Width (C) inch - 1.375
Total Width (T) mm - 47.625
Total Width (T) inch - 1.875
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.13
Distance Between The Apexes of The Pressure Cones (a) mm - 83
Distance Between The Apexes of The Pressure Cones (a) inch - 3.268

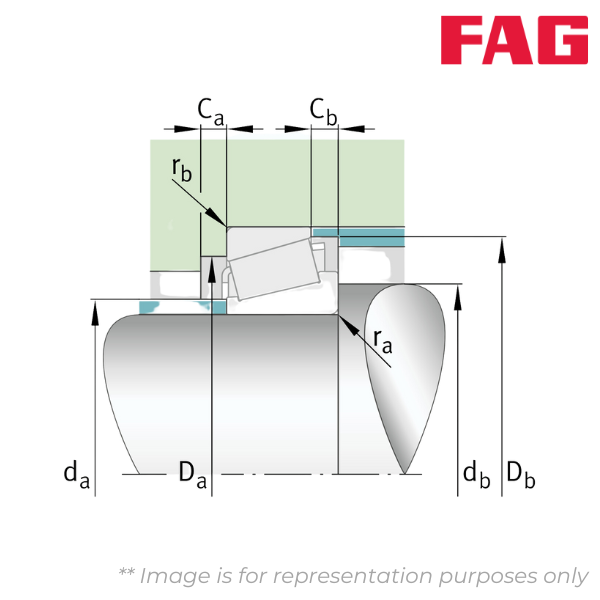

Guidance Rib Diameter of Inner Ring (d1) mm - 374
Guidance Rib Diameter of Inner Ring (d1) inch - 14.724
Maximum Diameter of Shaft Shoulder (da) mm - 345
Maximum Diameter of Shaft Shoulder (da) inch - 13.583
Minimum diameter of shaft shoulder (db) mm - 349
Minimum diameter of shaft shoulder (db) inch - 13.74
Minimum Diameter of Housing Shoulder (Da) mm - 394
Minimum Diameter of Housing Shoulder (Da) inch - 15.512
Minimum Diameter of Housing Shoulder (Db) mm - 402
Minimum Diameter of Housing Shoulder (Db) inch - 15.827
Minimum Axial Space (Ca) mm - 3.5
Minimum Axial Space (Ca) inch - 0.138
Minimum Axial Space (Cb) mm - 9
Minimum Axial Space (Cb) inch - 0.354
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 3.3
Maximum Fillet Radius of Housing (rb) inch - 0.13
Basic Dynamic Radial Load Rating (Cr) kN - 530
Basic Static Radial Load Rating (C0r) kN - 1070
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.5
Dynamic Axial Load Factor (Y) - 1.2
Static Axial Load Factor (Y0) - 0.66
Fatigue Load Limit, Radial (Cur) kN - 122
Limiting Speed (nG) min–1 - 1730
