KLM104949-LM104911 FAG

Brand - FAG
Item Number - KLM104949-LM104911 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.428
Inner Diameter (d) mm - 50.8
Inner Diameter (d) inch - 2
Outer Diameter (D) mm - 82.55
Outer Diameter (D) inch - 3.25
Inner Ring Width (B) mm - 22.225
Inner Ring Width (B) inch - 0.875
Outer Ring Width (C) mm - 16.51
Outer Ring Width (C) inch - 0.65
Total Width (T) mm - 21.59
Total Width (T) inch - 0.85
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.3
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.05
Distance Between The Apexes of The Pressure Cones (a) mm - 16
Distance Between The Apexes of The Pressure Cones (a) inch - 0.63
Guidance Rib Diameter of Inner Ring (d1) mm - 66.3
Guidance Rib Diameter of Inner Ring (d1) inch - 2.61

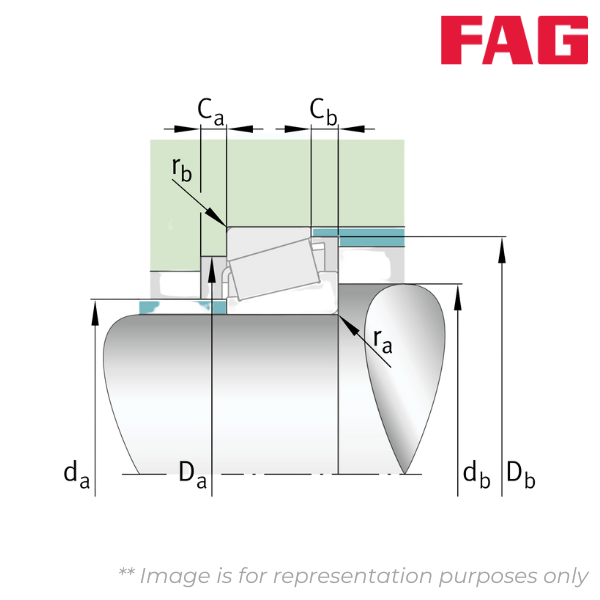

Maximum Diameter of Shaft Shoulder (da) mm - 55
Maximum Diameter of Shaft Shoulder (da) inch - 2.165
Minimum diameter of shaft shoulder (db) mm - 62
Minimum diameter of shaft shoulder (db) inch - 2.441
Minimum Diameter of Housing Shoulder (Da) mm - 75
Minimum Diameter of Housing Shoulder (Da) inch - 2.953
Minimum Diameter of Housing Shoulder (Db) mm - 78
Minimum Diameter of Housing Shoulder (Db) inch - 3.071
Minimum Axial Space (Ca) mm - 3
Minimum Axial Space (Ca) inch - 0.118
Minimum Axial Space (Cb) mm - 5
Minimum Axial Space (Cb) inch - 0.197
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 1.3
Maximum Fillet Radius of Housing (rb) inch - 0.05
Basic Dynamic Radial Load Rating (Cr) kN - 69
Basic Static Radial Load Rating (C0r) kN - 94
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.31
Dynamic Axial Load Factor (Y) - 1.97
Static Axial Load Factor (Y0) - 1.08
Fatigue Load Limit, Radial (Cur) kN - 11.5
Limiting Speed (nG) min–1 - 8700
