Description
Brand - FAG
Item Number - KLM229146-LM229110 FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 2.79
Inner Diameter (d) mm - 142.875
Inner Diameter (d) inch - 5.625
Outer Diameter (D) mm - 194.975
Outer Diameter (D) inch - 7.6762
Inner Ring Width (B) mm - 33
Inner Ring Width (B) inch - 1.2992
Outer Ring Width (C) mm - 27.5
Outer Ring Width (C) inch - 1.0827
Total Width (T) mm - 33
Total Width (T) inch - 1.2992
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 3.6
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.14
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 3.6
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.14
Distance Between The Apexes of The Pressure Cones (a) mm - 33
Distance Between The Apexes of The Pressure Cones (a) inch - 1.299
Guidance Rib Diameter of Inner Ring (d1) mm - 168
Guidance Rib Diameter of Inner Ring (d1) inch - 6.614

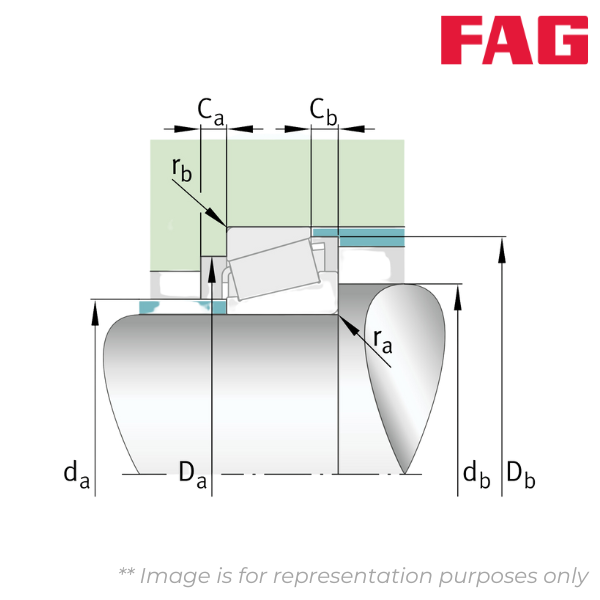

Maximum Diameter of Shaft Shoulder (da) mm - 150
Maximum Diameter of Shaft Shoulder (da) inch - 5.906
Minimum diameter of shaft shoulder (db) mm - 157
Minimum diameter of shaft shoulder (db) inch - 6.181
Minimum Diameter of Housing Shoulder (Da) mm - 182
Minimum Diameter of Housing Shoulder (Da) inch - 7.165
Minimum Diameter of Housing Shoulder (Db) mm - 190
Minimum Diameter of Housing Shoulder (Db) inch - 7.48
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 5.5
Minimum Axial Space (Cb) inch - 0.217
Maximum Fillet Radius of Shaft (ra) mm - 3.6
Maximum Fillet Radius of Shaft (ra) inch - 0.14
Maximum Fillet Radius of Housing (rb) mm - 3.6
Maximum Fillet Radius of Housing (rb) inch - 0.14
Basic Dynamic Radial Load Rating (Cr) kN - 223
Basic Static Radial Load Rating (C0r) kN - 400
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.33
Dynamic Axial Load Factor (Y) - 1.8
Static Axial Load Factor (Y0) - 0.99
Fatigue Load Limit, Radial (Cur) kN - 43.5
Limiting Speed (nG) min–1 - 3450
