L163149NW/L163110CD TIMKEN

Brand - TIMKEN
Item Number - L163149NW/L163110CD TIMKEN
Also Known As - L163149NW - L163110CD
Category - Double Row Tapered Roller Bearing (TNASW Type)

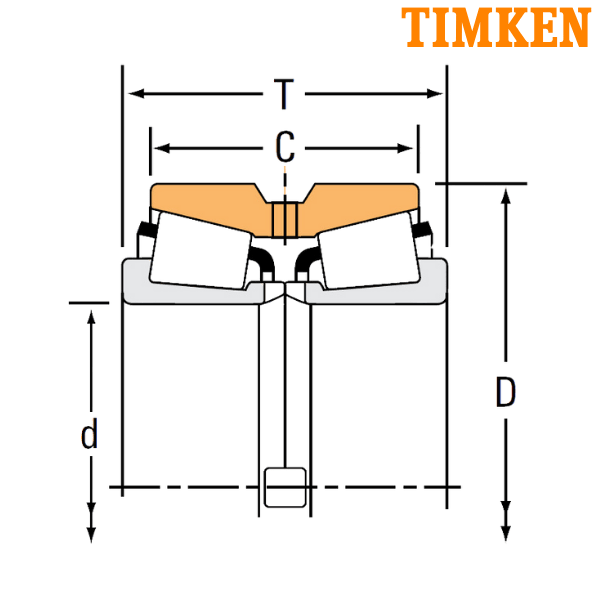

Bore Diameter (d) mm - 355.6
Bore Diameter (d) inch - 14
Outer Diameter (D) mm - 444.5
Outer Diameter (D) inch - 17.5
Width (T) mm - 136.525
Width (T) inch - 5.375
Double Outer Ring Width (C) mm - 111.125
Double Outer Ring Width (C) inch - 4.375
Dynamic Load Rating (C1) N - 1280000
Dynamic Load Rating (C1) lbf - 287000
Factor (e) - 0.31
Factor (Y1) - 2.2
Factor (Y2) - 3.27
Dynamic Radial Rating (90 million revolutions) (C90) N - 190000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 42700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 100000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 22500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 331000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 74400
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.9

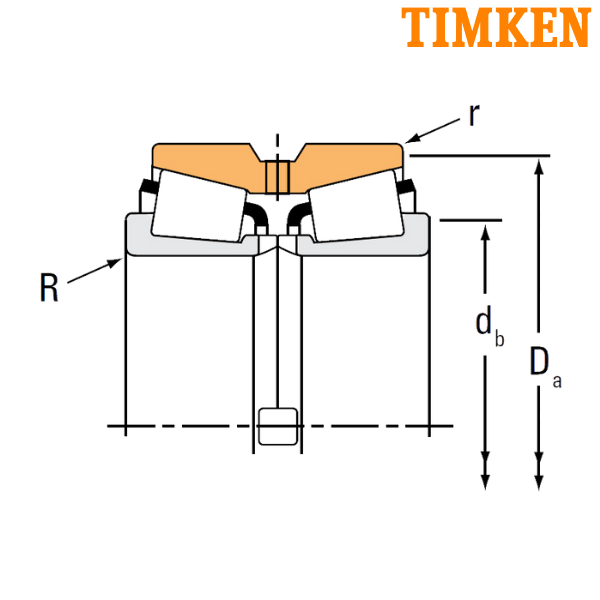

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 374
Backing Shoulder Diameter (db) inch - 14.72
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 430
Cup Frontface Backing Diameter (Da) inch - 16.93
Weight (kg) - 44.96
Weight (lbs) - 99.12
Inner Part Number - L163149NW
Outer Part Number - L163110CD
TNASW - Double-Row Bearings are a Variant of Type TNA, having Chamfers and Slots on the Front Face of the Inner Ring

** Images are for representation purposes only
