Description
Brand - RBC
Item Number - LJS2030 RBC
Category - Fiberglide® Composite Bearings (Standard Inch Series)

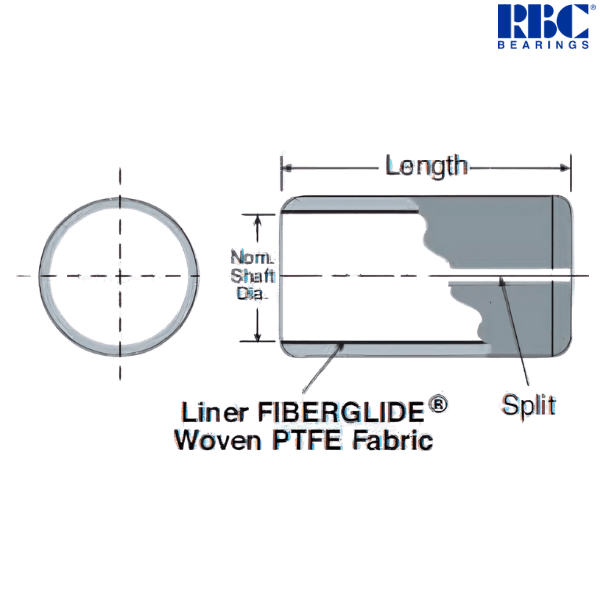

Principal Dimensions & Load Ratings (Imperial) :
Recommended Shaft Diameter - 1 .25 inch
Minimum Recommended Housing Bore - 1.311 inch *
Maximum Recommended Housing Bore - 1.312 inch *
Bearing Length - 1.875 (+0.000 to - 0.025) inch
Wall Thickness - 0.03 inch
Maximum Static Load - 23438 lbf
Description of Prefix : LJS
• Journal Bearings
• Composite PTFE
Other salient points to be noted :
• Provides high load capacity and low friction.
• Completely non-metallic-fabricated of woven PTFE fibers with no possibility of corrosion.
• Maximum compressive strength is 10,000 psi, with operating temperature range of -250°F to 200°F.
• Maximum speeds are typically 20 surface FPM.
* Recommended housing bores are for steel housings.

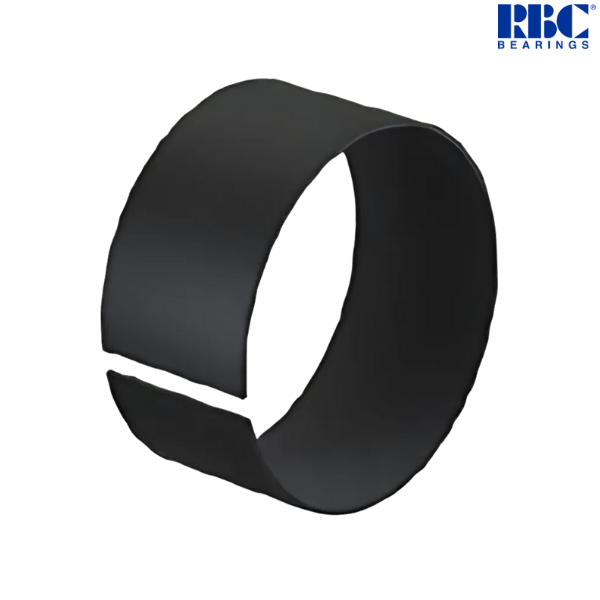

♦ ♦ Images are for representation purposes only
