LL205449/LL205410-B TIMKEN

Brand - TIMKEN
Item Number - LL205449/LL205410-B TIMKEN
Also Known As - LL205449 - LL205410-B

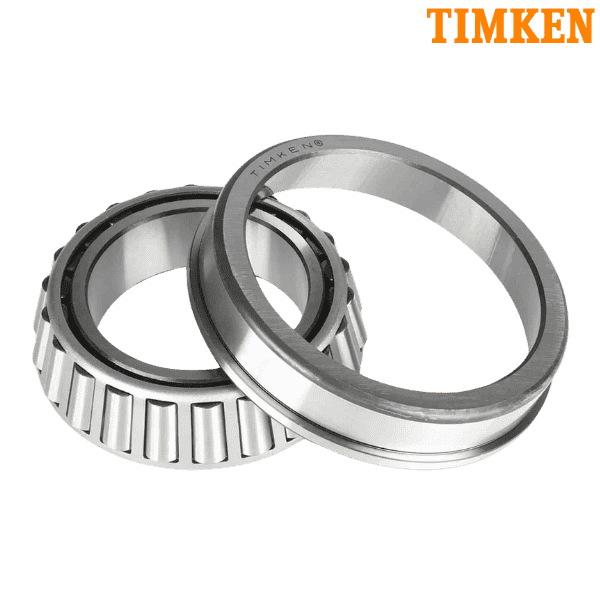

Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 50.8
Bore Diameter (d) inch - 2
Outer Diameter (D) mm - 77.788
Outer Diameter (D) inch - 3.0625
Width (T1) mm - 5.969
Width (T1) inch - 0.235
Dynamic Load Rating (C1) N - 37300
Dynamic Load Rating (C1) lbf - 8390
Factor (e) - 0.34
Factor (Y) - 1.78
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 9680
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 2180
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 5570
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1250
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.74
Basic Static Radial Load Rating (C0) N - 47200
Basic Static Radial Load Rating (C0) lbf - 10600
Cone Width (B) mm - 12.7
Cone Width (B) inch - 0.5
Cup Width (C) mm - 9.525
Cup Width (C) inch - 0.375
Effective Center Location (a) mm - 0
Effective Center Location (a) inch - 0
Outer Diameter of Outer Ring Flange (D1) mm - 80.582
Outer Diameter of Outer Ring Flange (D1) inch - 3.1725
Flange Width (C2) mm - 2.794
Flange Width (C2) inch - 0.11
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 55
Cone Frontface Backing Diameter (da) inch - 2.17
Cone Backface Backing Diameter (db) mm - 57
Cone Backface Backing Diameter (db) inch - 2.24
Cup Frontface Backing Diameter (Da) mm - 75
Cup Frontface Backing Diameter (Da) inch - 2.95
Geometry Factor (G1) - 24.2
Geometry Factor (G2) - 29.1
Geometry Factor (Cg) - 0.0699
Weight (kg) - 0.21
Weight (lbs) - 0.46
Inner Part Number - LL205449
Outer Part Number - LL205410-B

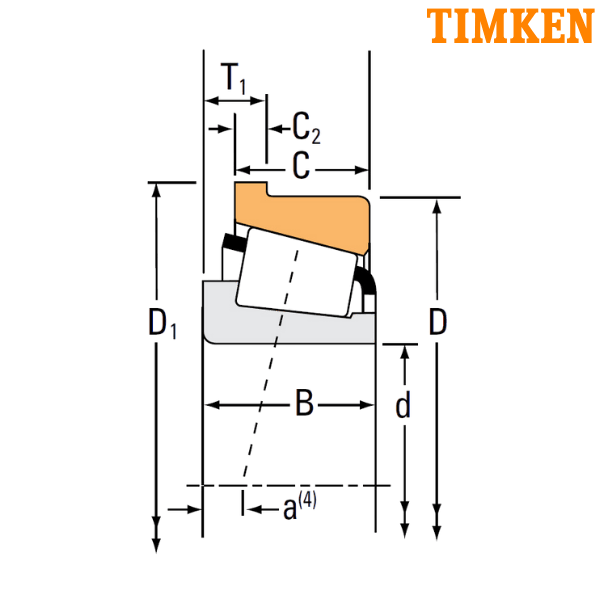

TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
