LL420549/LL420510 TIMKEN

Brand - TIMKEN
Item Number - LL420549/LL420510 TIMKEN
Also Known As - LL420549 - LL420510
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 101.6
Bore Diameter (d) inch - 4
Outer Diameter (D) mm - 134.938
Outer Diameter (D) inch - 5.3125
Width (T) mm - 15.875
Width (T) inch - 0.625
Dynamic Load Rating (C1) N - 64900
Dynamic Load Rating (C1) lbf - 14600
Factor (e) - 0.37
Factor (Y) - 1.62
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 16800
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3780
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 10700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2400
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.58
Basic Static Radial Load Rating (C0) N - 104000
Basic Static Radial Load Rating (C0) lbf - 23400
Cone Width (B) mm - 15.083
Cone Width (B) inch - 0.5938
Cup Width (C) mm - 11.908
Cup Width (C) inch - 0.4688
Effective Center Location (a) mm - 5.6
Effective Center Location (a) inch - 0.22

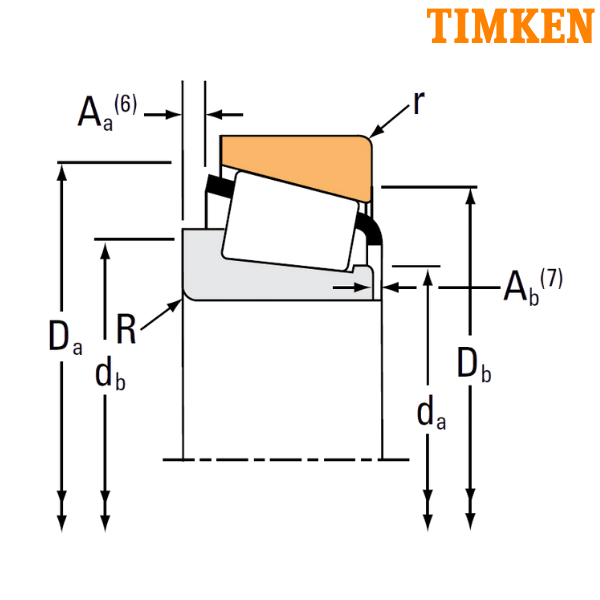

Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 107
Cone Frontface Backing Diameter (da) inch - 4.21
Cone Backface Backing Diameter (db) mm - 109
Cone Backface Backing Diameter (db) inch - 4.29
Max Housing Fillet Radius (r) mm - 1.5
Max Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 130
Cup Frontface Backing Diameter (Da) inch - 5.12
Cup Backface Backing Diameter (Db) mm - 128
Cup Backface Backing Diameter (Db) inch - 5.04
Cage-Cone Backface Clearance (Aa) mm - 1
Cage-Cone Backface Clearance (Aa) inch - 0.04
Cage-Cone Frontface Clearance (Ab) mm - 2.1
Cage-Cone Frontface Clearance (Ab) inch - 0.09
Geometry Factor (G1) - 95.5
Geometry Factor (G2) - 89.8
Geometry Factor (Cg) - 0.1126
Weight (kg) - 0.56
Weight (lbs) - 1.25
Inner Part Number - LL420549
Outer Part Number - LL420510
TS - Single Row Tapered Roller Bearing

** Images are for representation purposes only
