Description
Brand - TIMKEN
Item Number - LM565949/LM565910-B TIMKEN
Also Known As - LM565949 - LM565910-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 381
Bore Diameter (d) inch - 15
Outer Diameter (D) mm - 522.288
Outer Diameter (D) inch - 20.5625
Width (T1) mm - 38.1
Width (T1) inch - 1.5
Dynamic Load Rating (C1) N - 1390000
Dynamic Load Rating (C1) lbf - 313000
Factor (e) - 0.39
Factor (Y) - 1.56
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 360000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 81000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 238000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 53500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.51
Basic Static Radial Load Rating (C0) N - 2950000
Basic Static Radial Load Rating (C0) lbf - 663000
Cone Width (B) mm - 84.138
Cone Width (B) inch - 3.3125
Cup Width (C) mm - 61.912
Cup Width (C) inch - 2.4375
Effective Center Location (a) mm - 8.9
Effective Center Location (a) inch - 0.35
Outer Diameter of Outer Ring Flange (D1) mm - 536.476
Outer Diameter of Outer Ring Flange (D1) inch - 21.1211
Flange Width (C2) mm - 14.288
Flange Width (C2) inch - 0.5625

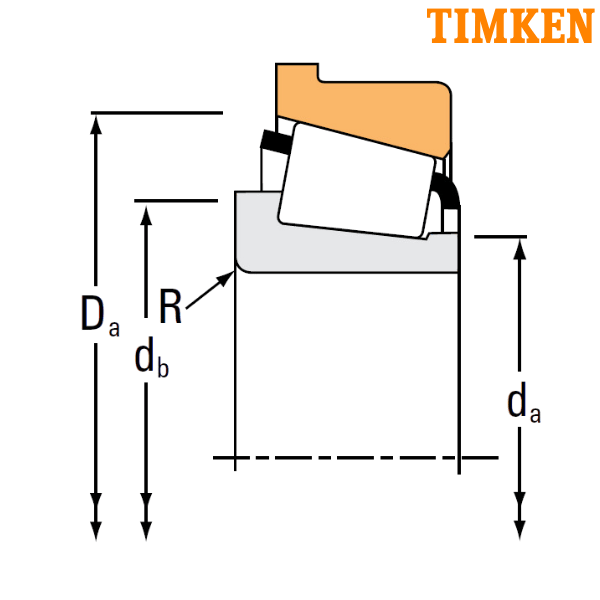

Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Cone Frontface Backing Diameter (da) mm - 402
Cone Frontface Backing Diameter (da) inch - 15.83
Cone Backface Backing Diameter (db) mm - 411
Cone Backface Backing Diameter (db) inch - 16.18
Cup Frontface Backing Diameter (Da) mm - 507
Cup Frontface Backing Diameter (Da) inch - 19.96
Geometry Factor (G1) - 3379.9
Geometry Factor (G2) - 375.8
Geometry Factor (Cg) - 0.2028
Weight (kg) - 50.42
Weight (lbs) - 111.16
Inner Part Number - LM565949
Outer Part Number - LM565910-B
TSF - Single-Row Bearing with a Flange on the Outer Ring
** Images are for representation purposes only
