M224749/M224710 TIMKEN

Brand - TIMKEN
Item Number - M224749/M224710 TIMKEN
Also Known As - M224749 - M224710
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 120.65
Bore Diameter (d) inch - 4.75
Outer Diameter (D) mm - 174.625
Outer Diameter (D) inch - 6.875
Width (T) mm - 35.72
Width (T) inch - 1.4063
Dynamic Load Rating (C1) N - 244000
Dynamic Load Rating (C1) lbf - 54900
Factor (e) - 0.33
Factor (Y) - 1.8
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 63400
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 14200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 36100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8110
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Basic Static Radial Load Rating (C0) N - 422000
Basic Static Radial Load Rating (C0) lbf - 94900
Cone Width (B) mm - 36.512
Cone Width (B) inch - 1.4375
Cup Width (C) mm - 27.783
Cup Width (C) inch - 1.0938
Effective Center Location (a) mm - -3.6
Effective Center Location (a) inch - -0.14

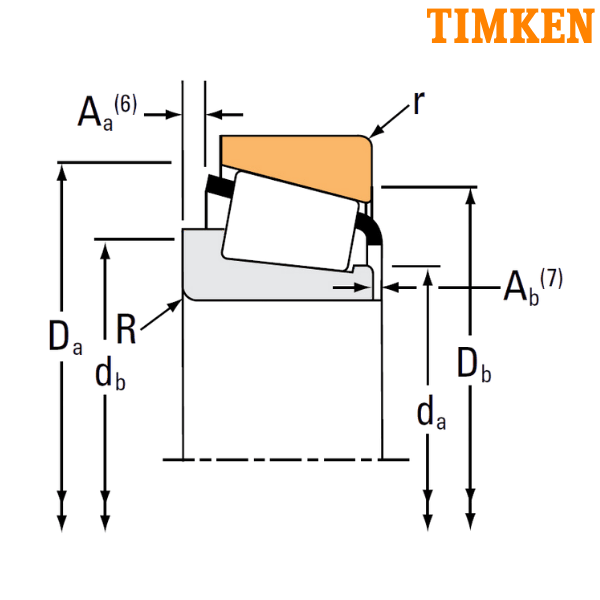

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 129
Cone Frontface Backing Diameter (da) inch - 5.08
Cone Backface Backing Diameter (db) mm - 135
Cone Backface Backing Diameter (db) inch - 5.31
Max Housing Fillet Radius (r) mm - 1.5
Max Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 167.9
Cup Frontface Backing Diameter (Da) inch - 6.61
Cup Backface Backing Diameter (Db) mm - 162
Cup Backface Backing Diameter (Db) inch - 6.38
Cage-Cone Backface Clearance (Aa) mm - 3.7
Cage-Cone Backface Clearance (Aa) inch - 0.14
Cage-Cone Frontface Clearance (Ab) mm - 0.5
Cage-Cone Frontface Clearance (Ab) inch - 0.02
Geometry Factor (G1) - 279.1
Geometry Factor (G2) - 86.6
Geometry Factor (Cg) - 0.1575
Weight (kg) - 2.67
Weight (lbs) - 5.9
Inner Part Number - M224749
Outer Part Number - M224710
TS - Single Row Tapered Roller Bearing

** Images are for representation purposes only
