Description
Brand - FAG
Item Number - M7020-C-T-P4S-XL FAG
Category - Spindle Bearing
Weight (m) kg - 1.3
Inner Diameter (d) mm - 100
Outer Diameter (D) mm - 150
Width (B) mm - 24
Minimum Chamfer Dimension (rmin) mm - 1.5
Minimum Chamfer Dimension (r1min) mm - 1
Contact angle (°) - 17

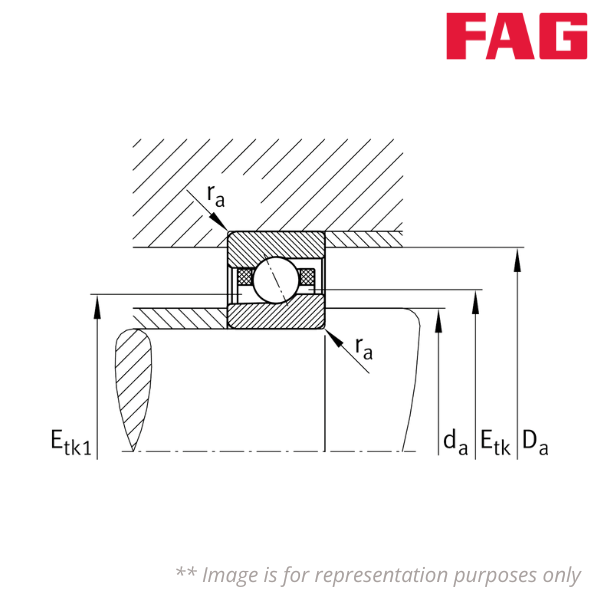

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 110
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 141
Minimum Diameter Injection Pitch (Etk) mm - 121.7
Basic Dynamic Load Rating, Radial (Cr) N - 43000
Basic Static Load Rating, Radial (C0r) N - 32000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 13200
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 20000
Preload Force Light (FV L) N - 342
Preload Force Medium (FV M) N - 909
Preload Force Heavy (FV H) N - 1922
Lift-off Force Light (KaE L) N - 1016
Lift-off Force Medium (KaE M) N - 2810
Lift-off Force Heavy (KaE H) N - 6220
Axial Rigidity Light (Ca L) N/µm - 108
Axial Rigidity Medium (Ca M) N/µm - 160
Axial Rigidity Heavy (Ca H) N/µm - 223
