Description
Brand - FAG
Item Number - M7021-C-T-P4S-XL FAG
Category - Spindle Bearing
Weight (m) kg - 1.6
Inner Diameter (d) mm - 105
Outer Diameter (D) mm - 160
Width (B) mm - 26
Minimum Chamfer Dimension (rmin) mm - 2
Minimum Chamfer Dimension (r1min) mm - 1
Contact angle (°) - 17

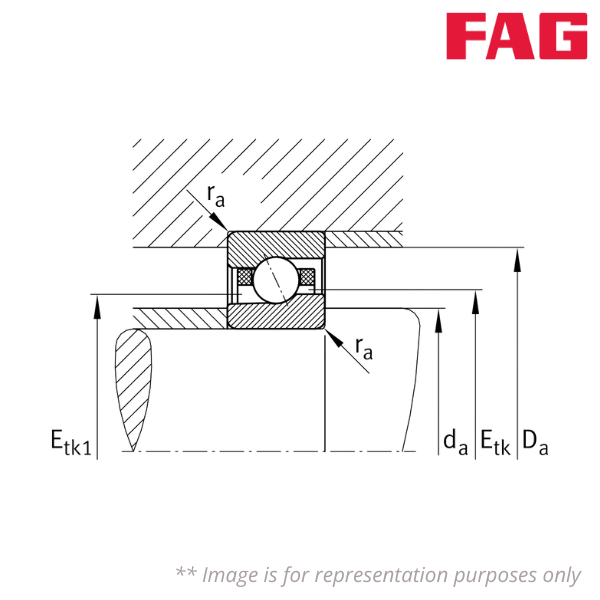

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 116
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 150
Minimum Diameter Injection Pitch (Etk) mm - 129
Basic Dynamic Load Rating, Radial (Cr) N - 53000
Basic Static Load Rating, Radial (C0r) N - 39500
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 12500
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 18900
Preload Force Light (FV L) N - 419
Preload Force Medium (FV M) N - 1114
Preload Force Heavy (FV H) N - 2356
Lift-off Force Light (KaE L) N - 1244
Lift-off Force Medium (KaE M) N - 3445
Lift-off Force Heavy (KaE H) N - 7626
Axial Rigidity Light (Ca L) N/µm - 115
Axial Rigidity Medium (Ca M) N/µm - 171
Axial Rigidity Heavy (Ca H) N/µm - 238
