Description
Brand - FAG
Item Number - M71918-E-T-P4S-XL FAG
Category - Spindle Bearing
Weight (m) kg - 0.52
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 125
Width (B) mm - 18
Minimum Chamfer Dimension (rmin) mm - 1.1
Minimum Chamfer Dimension (r1min) mm - 0.6
Contact angle (°) - 25
Diameter Shaft Shoulder Clearance - h12

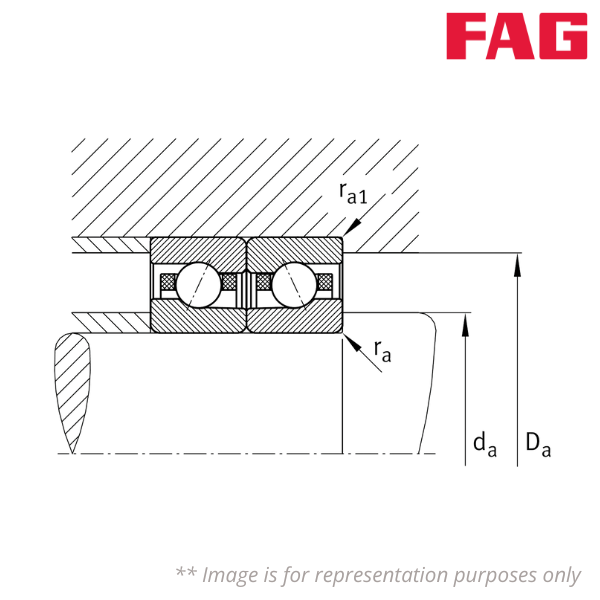

Diameter Shaft Shoulder (da) mm - 97
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 119

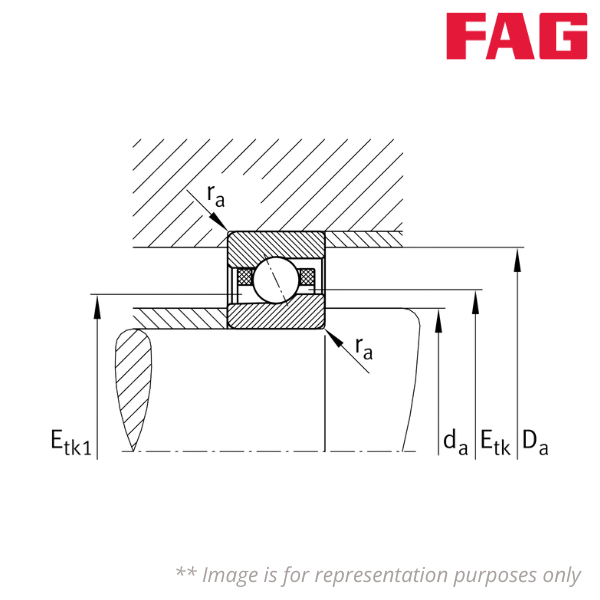

Minimum Diameter Injection Pitch (Etk) mm - 104.4
Basic Dynamic Load Rating, Radial (Cr) N - 31000
Basic Static Load Rating, Radial (C0r) N - 20100
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 14500
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 21400
Preload Force Light (FV L) N - 317
Preload Force Medium (FV M) N - 832
Preload Force Heavy (FV H) N - 1736
Lift-off Force Light (KaE L) N - 913
Lift-off Force Medium (KaE M) N - 2431
Lift-off Force Heavy (KaE H) N - 5164
Axial Rigidity Light (Ca L) N/µm - 161
Axial Rigidity Medium (Ca M) N/µm - 228
Axial Rigidity Heavy (Ca H) N/µm - 301
